SDS1104 4-CH Super-economical Type Digital Storage Oscilloscope

One-Click Show All Measurements

Built-in 39 types of auto measurement,display all the measurement values

with one-click,convenient to

view the waveform information.

Built-in FFT Spectrum Analysis Function

It provides the FFT rms function,which

supports Hamming,Hanning,Blackman,

Rectangle,Kaiser,Bartlrtt.

Auto Cursor Function

Auto cursor function can quickly

measure the difference between two points of the waveform,help engineers analyze the real-time measurement waveform.

Waveform Zoom Function

The upper part is the main window,which displays the complete

waveform,and the lower part is the enlarged area,which helps to observe more waveform details and make it easier to read parameter data.

Waveform storage function

16 sets of waveforms can be saved in the internal memory or U disk. The saved waveform and themeasured waveform can be compared and

analyzed

Note: The yellow waveform is the current measured waveform, and the blue waveformn is the saved waveform.

Waveform math function

Contains +,-,",/, FFT, inverted, easy to deal withtest problems.

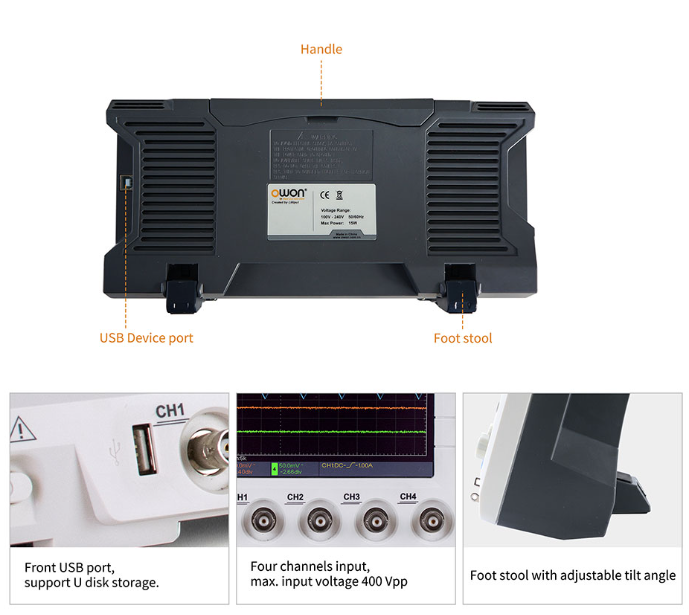

Communication between oscilloscope and host computer

Support SCPl,LabVIEW communication function. Communicate with computer through the supplied USB cable.
