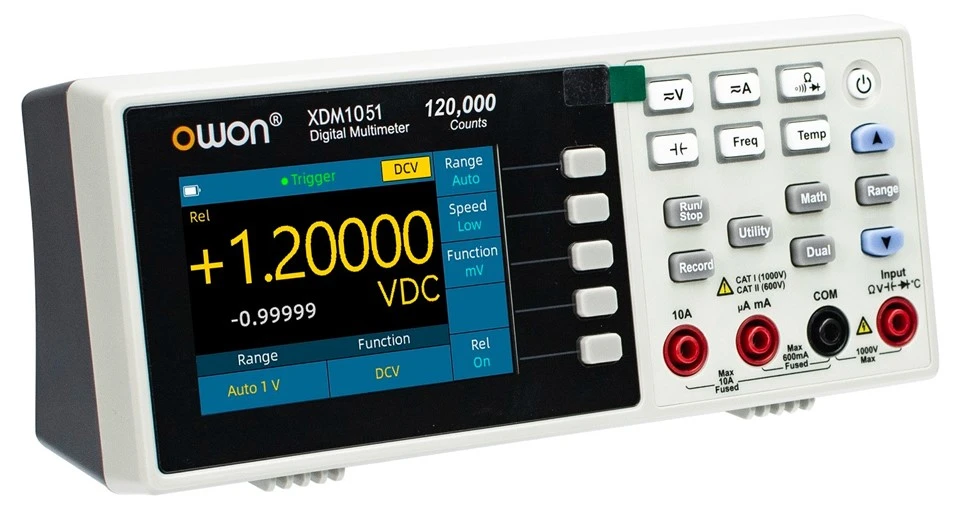

OWON 5 1/2 Digits Bench-type Digital Multimeter
+ Basic DC voltage accuracy down to 0.05%
+ Multiple functions: DC/AC voltage, DC/AC current, resistance, capacitance, continuity, diode test,temperature, AC + frequency (AC+Hz), min/max, average, dB/dBm, relative, and other math functions
+ Up to 85 rdgs/s measurement speed, with low, medium, and high speed settings
+ Dual display for viewing two measurement results at the same time
+ Built-in data logger, supporting up to 1,000 manual/automatic records
+ USB Device or RS232 interface for PC communication and remote control
+ Standard SCPI commands for easy automated test system integration
+ AC power supply (XDM1051) or built-in lithium battery (XDM1251) for different applications.
+ 3.5-inch IPS color display, 480 x 320 resolution
Specifications
The instrument must run continuously at the specified temperature for at least 30 minutes to ensure the following specifications.
|
Function |
Range |
Resolution / Frequency Range |
Accuracy ± (% reading + counts) |
||
|
DC Voltage |
100.000 mV |
0.001 mV |
0.1% + 10 |
||
|
1.00000 V |
0.00001 V |
0.05% + 5 |
|||
|
10.0000 V |
0.0001 V |
0.05% + 5 |
|||
|
100.000 V |
0.001 V |
0.1% + 5 |
|||
|
1000.00 V |
0.01 V |
0.1% + 10 |
|||
|
True RMS AC Voltage |
500 mV – 750 V |
20 Hz – 45 Hz |
1% + 30 |
||
|
45 Hz – 65 Hz |
0.5% + 30 |
||||
|
65 Hz – 1 kHz |
0.7% + 30 |
||||
|
DC Current |
100 uA |
0.001 uA |
0.15% + 20 |
||
|
1000 uA |
0.01 uA |
0.15% + 10 |
|||
|
10 mA |
0.0001 mA |
0.15% + 20 |
|||
|
100 mA |
0.001 mA |
0.15% + 10 |
|||
|
1 A |
0.00001 A |
0.3% + 20 |
|||
|
10 A |
0.0001 A |
0.5% + 10 |
|||
|
True RMS AC Current |
500 uA – 500 mA |
20 Hz – 1 kHz |
0.5% + 20 |
||
|
5 A – 10 A |
1.5% + 20 |
||||
|
Resistance |
100.000 Ω |
0.001 Ω |
0.15% + 20 |
||
|
1.00000 kΩ |
0.00001 kΩ |
0.15% + 20 |
|||
|
10.0000 kΩ |
0.0001 kΩ |
0.15% + 20 |
|||
|
100.000 kΩ |
0.001 kΩ |
0.15% + 20 |
|||
|
1.00000 MΩ |
0.00001 MΩ |
0.3% + 20 |
|||
|
10.0000 MΩ |
0.0001 MΩ |
0.5% + 20 |
|||
|
100.000 MΩ |
0.001 MΩ |
1% + 50 |
|||
|
Diode |
3.0000 V |
0.0001 V |
1% + 10 |
||
|
Continuity |
1000.0 Ω |
0.1 Ω |
Adjustable Threshold |
||
|
Frequency |
10.000 Hz – 60 MHz |
/ |
± (0.2% + 10) |
||
|
Capacitance |
50 nF – 500 uF |
/ |
2.5% + 10 |
||
|
5 mF – 50 mF |
/ |
5% + 10 |
|||
|
Temperature |
K Thermocouple |
-200 –1300°C |
0.1°C |
± (1% + 2°C) |
|
|
PT100 |
-200 – 800°C |
0.1°C |
± (1% + 2°C) |
||
|
Maximum Reading |
120,000 |
||||
|
Record Length |
1,000 points |
||||
|
Communication Interface |
RS232 or USB Device |
||||
|
Dimensions (W x H x D) |
200mm x 86.5mm x 64mm |
||||
|
Display |
3.5-inch IPS display, 480 x 320 resolution |
||||
