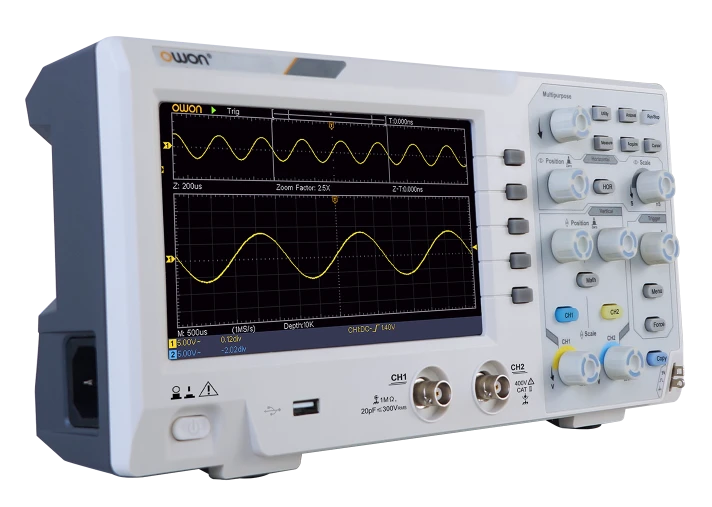

SDS1000 Series 2-CH Super-economical Type Digital Storage Oscilloscope
-Sample rate:100MS/s -1GS/s
-Ultra-thin body
-SCPI,and LabVIEW supported
SDS1000 Series 2CH Super-economical Digital Storage Oscilloscope
◆ 2-Channel
◆ Sample rate : 100MS/s -1GS/s
◆ Ultra-thin body
◆ 7 inch high resolution LCD
◆ SCPI, and LabVIEW supported
01. 8 inches large display
8 inches (800 x 600) TFT high resolution LCD display much detail. Horizontal 15
divisions and vertical 10 divisions, perfect than same level product.

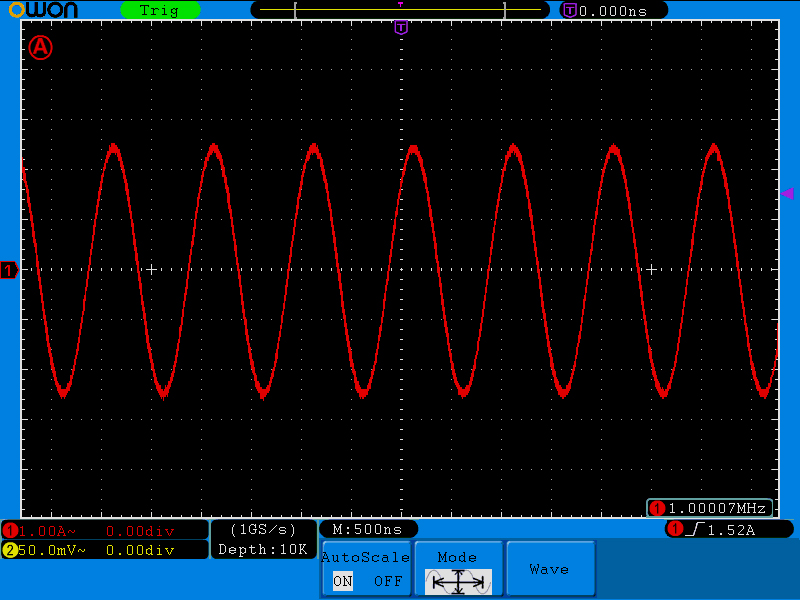

02. Auto-scale function
While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.

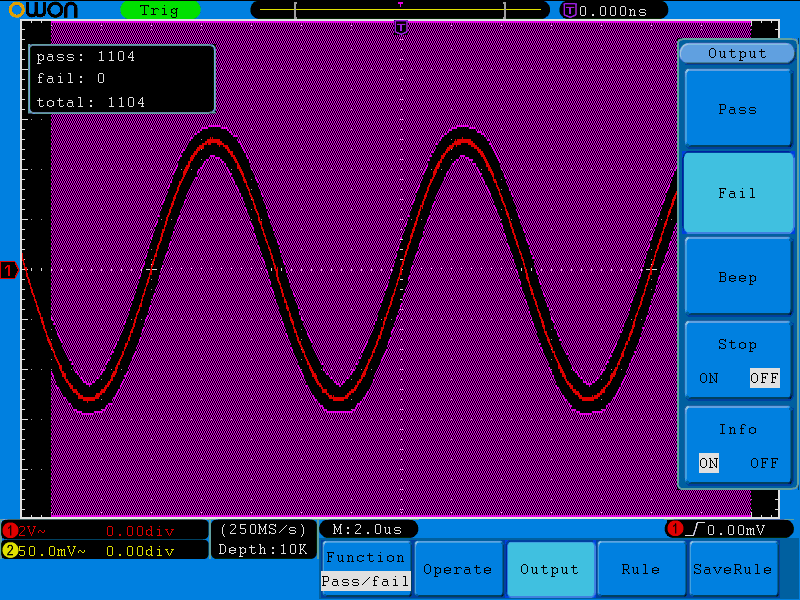

03. Pass/Fail function
SDS series waveform record/play function support 2-channel waveform record.Moreover, Pass/Fail waveform is also able to be recorded. 1000 frames record capacity. Support waveform replay to analyzer the detail.

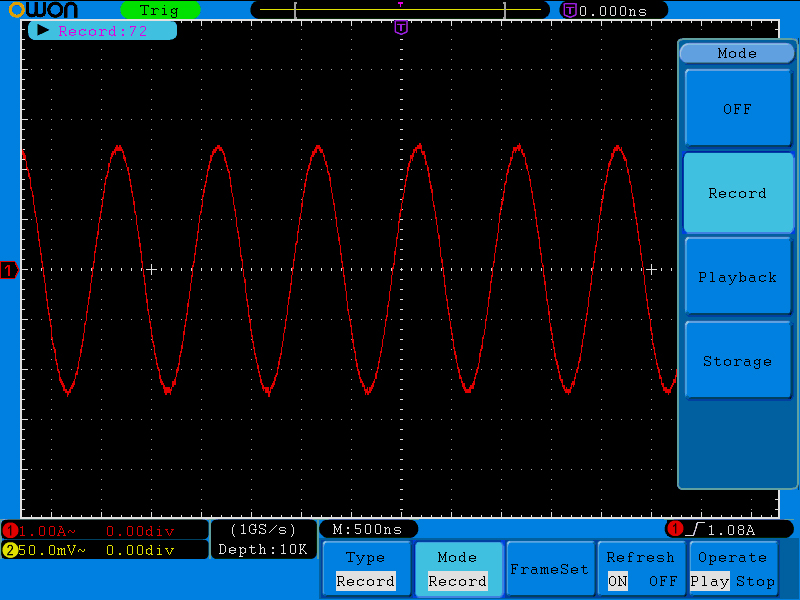

04. Waveform Record/Play
SDS series waveform record/play function support 2-channel waveform record. Moreover, Pass/Fail waveform is also able to be recorded. 1000 frames record capacity. Support waveform replay to analyzer the detail.
Specific parameter details
About OWON
Specifications
| Model | SDS1022 | SDS1052 | SDS1102 | SDS1202 | |
|---|---|---|---|---|---|
| Bandwidth | 20MHz | 50MHz | 100MHz | 200MHz | |
| Sample Rate | 100MS/s | 500MS/s | 1GS/s | ||
| Horizontal Scale (s/div) | 5ns/div - 1000s/div, step by 1 - 2 - 5 | 2ns/div - 1000s/div, step by 1 - 2 - 5 | |||
| Channel | 2 | ||||
| Display | 7" color LCD, 800 x 480 pixels | ||||
| Input Coupling | DC, AC , and GND | ||||
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) | ||||
| Vertical Sensitivity | 5mV/div - 5V/div (at input) | ||||

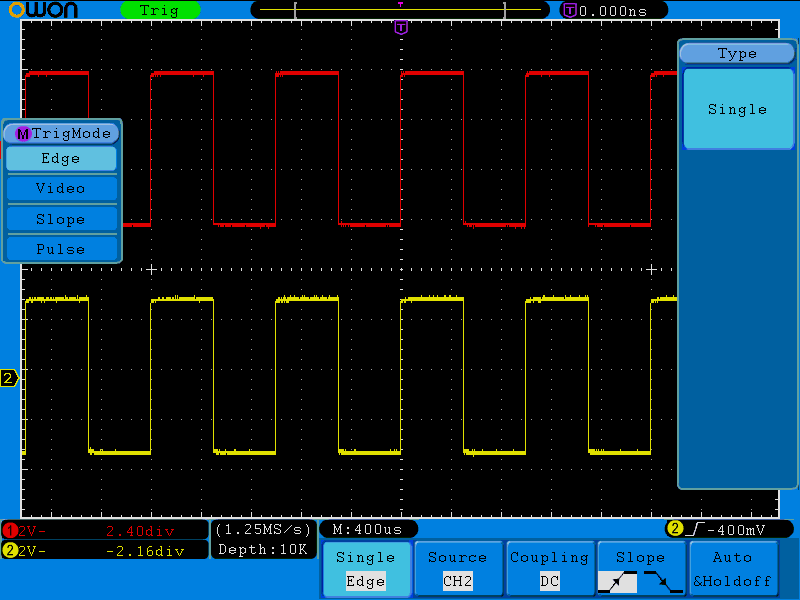

| Trigger Type | Edge, Video | ||||
| Trigger Mode | Auto, Normal, and Single | ||||
| Waveform Math | ＋, －, x, ÷, invert, FFT | ||||
| Fuse | 2A, T class, 250V | ||||
|
Dimension (W x H x D) |
301 x 152 x 70 mm | ||||
| Device Weight | 1.10 kg | ||||
SUPPORT
▶ PC software for OWON SDS1000 DSO
▶ USB driver for all series OWON DSO and AWG
▶ SDS1000 Series DSO user manual
ACCESSORIES
The accessories subject to final delivery.
