OWON HSA1000 Series Handheld Spectrum Analyzer

Name: OWON HSA1000 Series Handheld Spectrum Analyzer
Brand: OWON
SKU: 227238324

+ Frequency range 9 kHz to 1.6GHz/3.6GHz/7.5GHz
+ -160 dBm DANL(Displayed Average Noise Level)
+ Phase Noise < -106 dBc/Hz @1GHz at 10 kHz offset
+ 1Hz Minimum Resolution Bandwidth (RBW)
+ Total Amplitude Accuracy <0.7 dB
+ Provide EMl pre-compliance test function, optional EMC test software
+ Standard Pass/Fail on-site test alert ability
+ Li-ion battery, operating life up to 4 - 6 hours, easy replacement,you can purchase extra batteries for longer test time.
+ Optional 1.6GHz/3.6GHz/7.5GHz tracking generator
+ Standard GPS receiver, optional antenna, the latitude/longitude information andtest information can be recorded
+ 8-inch (1024*768)IPS LCD touchscreen, wider viewing angle, built-in light sensor toadjust the screen backlight according to the environmental light.

Send Inquiry

Chat Now

Download

Product Introduction

HSA1000 Series Handheld Spectrum Analyzer

+ Frequency range 9 kHz to 1.6GHz/3.6GHz/7.5GHz

+ -160 dBm DANL(Displayed Average Noise Level)

+ Phase Noise < -106 dBc/Hz @1GHz at 10 kHz offset

+ 1Hz Minimum Resolution Bandwidth (RBW)

+ Total Amplitude Accuracy <0.7 dB

+ Provide EMl pre-compliance test function, optional EMC test software

+ Standard Pass/Fail on-site test alert ability

+ Li-ion battery, operating life up to 4 - 6 hours, easy replacement,you can purchase extra batteries for longer test time.

+ Optional 1.6GHz/3.6GHz/7.5GHz tracking generator

+ Standard GPS receiver, optional antenna, the latitude/longitude information andtest information can be recorded

+ 8-inch (1024*768)IPS LCD touchscreen, wider viewing angle, built-in light sensor toadjust the screen backlight according to the environmental light.

7.5GHz

Frequency range

-160 dBm

DANL

1Hz

Minimum Resolution Bandwidth

6 hours

Test time

More convenient and efficient for field testing

Equipped with an 8-inch IPS LCD, this device offers an expansive viewing experience with a wider angle, ensuring optimal visibility both indoors and outdoors. The built-in light sensor intelligently adjusts the screen backlight based on environmental lighting conditions, delivering a superior, bright, and crystal-clear display. This innovative feature eliminates the need to operate the device exclusively in shaded areas, enhancing usability across various environments.

Excellent power management function

With a battery operating life extending up to 4 - 6 hours, this device ensures prolonged usage for your testing needs. For even longer test times, additional batteries are available for purchase, offering seamless and easy battery replacement. This user-friendly feature enhances flexibility and convenience during extended usage scenarios.

Excellent performance

Excellent small signal

measurement capability

-160 dBm DANL (Displayed Average Noise Level),can observe weaker small signals

More accurate low-noise measurements

Phase Noise < -80 dBc/Hz @1GHz at 10 kHz offset

Pass/Fail function

Quickly determine if the test results pass

Provides EMI pre-compliance

test function

Equipped with EMl filter (6dB) and peak detectoras standard,it is more accurate for EMl pre-testand diagnosis, and complete testing and productionreport can be completed by using supporting software.

planning cepteur

planning cepteur sint occaecat planning cepteur sint occaecat

Waterfall plot graphic

View the behavior of varying signal parameters overtime,track the frequency and power behavior overthe time, particularly intermittent signals. The usercan use waterfall plot graphic to analyze the stabilityof a signal over the time, or to identify intermittent interference signals in communications systerms.

Provide multiple extended function modes

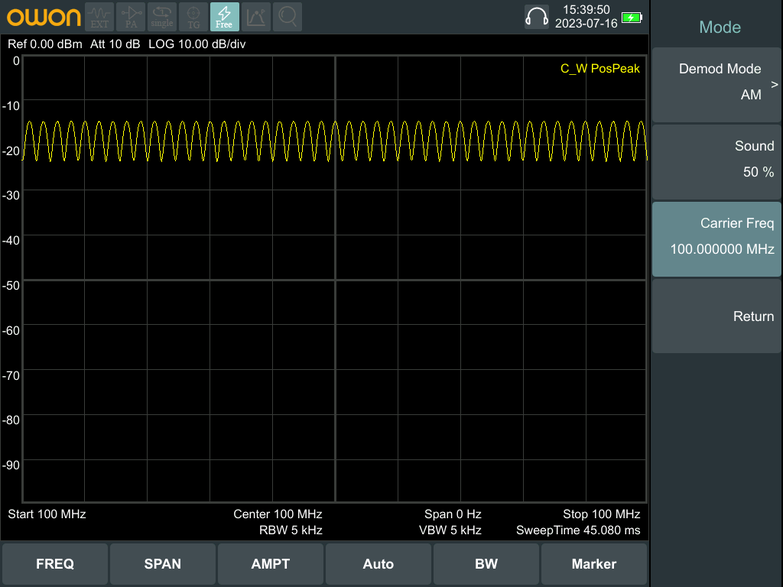

Standard modulation signal quality analysis, audio demodulation, field strength measurement, channe measurementand frequency counter, ect. multiple general and extended test functions.
