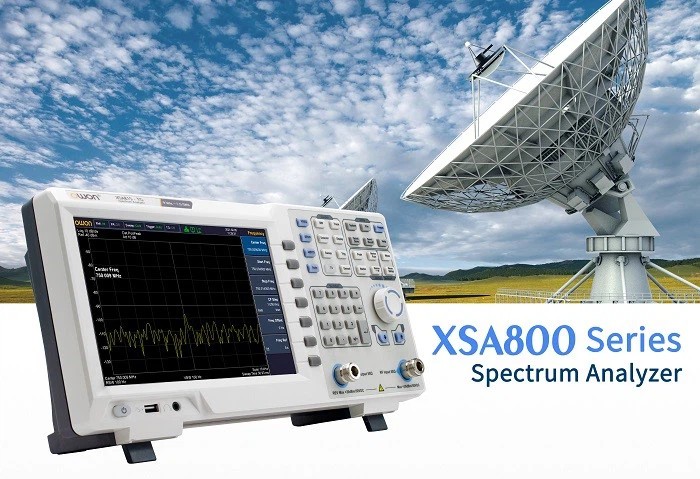

XSA800 Series Spectrum Analyzer
+ -160 dBm Displayed Average Noise Level (DANL)
+ Phase noise -80 dBc/Hz @1GHz and offset at 10 kHz
+ Total amplitude accuracy <0.7 dB
+ 1 Hz minimum resolution bandwidth (RBW)
+ EMI pre-compliance test kit, optional EMC test software
+ Optional tracking generator (standard tracking generator hardware, can be remotely upgraded according to needs)
+ Waterfall plot graphic, modulation signal quality analysis, audio demodulation, ect. multiple general and extended test functions
+ Standard Pass/Fail on-site test and alert function
+ Adopt all-digital intermediate frequency technology
+ Multiple interfaces: USB Host, USB Device, LAN, earphone interface, HDMI + 9-inch LCD, high resolution 1280×800 pixels
XSA800 Series Spectrum Analyzer
· Frequency range 9kHz -1.5GHz
· -160 dBm Displayed Average Noise Level (DANL)
· Phase noise -80 dBc/Hz @1GHz and offset at 10 kHz
· Total amplitude accuracy <0.7 dB
· 1 Hz minimum resolution bandwidth (RBW)
· EMI pre-compliance test kit, optional EMC test software
· Optional tracking generator (standard tracking generator hardware, can
be remotely upgraded according to needs)
· Waterfall plot graphic, modulation signal quality analysis, audio demodulation, ect. multiple general and extended test functions
· Standard Pass/Fail on-site test and alert function
· Adopt all-digital intermediate frequency technology
· Multiple interfaces: USB Host, USB Device, LAN, earphone interface, HDMI
· 9-inch LCD, high resolution 1280×800 pixels
1Hz minimum resolution bandwidth (RBW), effectively distinguishing the nearby signals
Quick capture function
Car remote keys, TPMS tire pressure modules and small wireless modules usually use ASK/FSK modulation. XSA800 can complete the capture of ASK/FSK signals, and directly obtain its center frequency, power and offset parameters.
Excellent small signal measurement capability
-160 dBm DANL (Displayed Average Noise Level), can observe weaker small signals
More accurate low-noise measurements
Phase Noise < –80 dBc/Hz @1GHz at 10 kHz offset
Pass/Fail function
Quickly determine if the test results pass
Provides EMI pre-compliance test function
Equipped with EMI filter (6dB) and quasi-peak detector as standard, it is more accurate for EMI pre-test and diagnosis, and complete testing and production report can be completed by using supporting software.
Provide EMC test function (requires optional software)
Built-in more than 200 mainstream EMC test standards and regulations templates. The user selects the corresponding template, and the software automatically sets the spectrum analyzer and records the test data. The data and regulations can be compared on the same screen. Users can also customize regulations for comparative analysis.
Provide multiple extended function modes
Standard modulation signal quality analysis, audio demodulation, field strength measurement, channel measurement and frequency counter, ect. multiple general and extended test functions.
modulation signal quality analysis
audio demodulation
channel measurement
frequency counter
Waterfall plot graphic
View the behavior of varying signal parameters over time, track the frequency and power behavior over the time, particularly intermittent signals. The user can use waterfall plot graphic to analyze the stability of a signal over the time, or to identify intermittent interference signals in communications systems.
Weight: Approx. 3.7 kg (main device)
Dimensions: 375 mm (W)× 185 mm (H) ×120 mm (D)
| Frequency | ||||||
| Frequency Range | XSA805（TG） | 9 kHz to 500 MHz | ||||
| XSA810（TG） | 9 kHz to 1 GHz | |||||
| XSA815（TG） | 9 kHz to 1.5 GHz | |||||
| Frequency Resolution | 1 Hz | |||||
| Reference frequency aging rate | < 1 ppm/year | |||||
| Frequency Span | ||||||
| Span Range | 0 Hz, 100 Hz to max frequency of instrument | |||||
| Span Uncertainty | ± span / (sweep points-1) | |||||
| SSB Phase Noise(20℃ to 30℃, fc = 500 MHz) | ||||||
| Carrier Offset | 10 kHz | < -80 dBc/Hz | ||||
| 100 kHz | < -100 dBc/Hz | |||||
| 1 MHz | < -115 dBc/Hz | |||||
| Bandwidth | ||||||
| Resolution Bandwidth（-3 dB） | 1 Hz to 1 MHz, in 1-3-5-10 sequence | |||||
| Resolution Bandwidth (-6 dB) (EMI) | 200 Hz, 9 kHz, 120 kHz, 1 MHz | |||||
| RBW Accuracy | < 5% typical | |||||
| Resolution Filter Shape Factor (60 dB : 3 dB) | < 5 typical | |||||
| Video Bandwidth (-3 dB) | 10 Hz to 1 MHz, in 1-3-5-10 sequence | |||||
| Amplitude and level | ||||||
| Amplitude measurement range | DANL to +10 dBm, 100 kHz to 10 MHz, Preamp Off DANL to +20 dBm, fc ≥ 10 MHz, Preamp Off | |||||
| Reference Level | -80 dBm to +30 dBm, 0.01 dB by step | |||||
| Preamp | 20 dB, nominal, 100 kHz to 1.5 GHz | |||||
| Input Attenuator | XSA805（TG） XSA810（TG） XSA815（TG） | 0 to 40 dB, 1 dB by step | ||||
| Display Average Noise Level (Input attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, 20℃ to 30℃, input impedance = 50 Ω) | ||||||
| Preamp Off | 9 kHz to 1 MHz | -95 dBm (Typical), <-88 dBm | ||||
| 1 MHz to 500 MHz | -140 dBm (Typical), <-130dBm | |||||
| XSA810(TG) | 500 MHz to 1 GHz | |||||
| XSA815(TG) | 500 MHz to 1.5 GHz | -138 dBm (Typical), <-128 dBm | ||||
| Preamp On | 100 kHz to 1 MHz | -135 dBm (Typical), <-128 dBm | ||||
| 1 MHz to 500 MHz | -160 dBm (Typical), <-150 dBm | |||||
| XSA810(TG) | 500 MHz to 1 GHz | |||||
| XSA815(TG) | 500 MHz to 1.5 GHz | -158 dBm (Typical), <-148 dBm | ||||
| Level Display | ||||||
| Trace detectors | positive-peak, negative-peak, normal, sample, RMS, voltage average, quasi-peak | |||||
| Trace functions | clear write, max hold, min hold, average, view, blank, trace math | |||||
| Units of level axis | dBm, dBμW, dBpW, dBmV, dBμV, W, V | |||||
| Frequency response (fc ≥ 100 kHz, 20℃ to 30℃,30% to 70% relative humidity, input attenuation=10 dB, reference frequency= 50 MHz) | ||||||
| Preamp Off | ＜0.7 dB | |||||
| Preamp On | ＜1.0 dB | |||||
| Difference and Accuracy | ||||||
| Uncertainty | fc = 50 MHz, peak detector, preamplifier off, attenuation = 10 dB, input signal level = -10 dBm, 20℃ to 30℃ | |||||
| ＜ 0.4 dB | ||||||
| Level Measurement Uncertainty | ||||||
| Level measurement uncertainty | 95% confidence level, S/N > 20 dB, RBW = VBW = 1 kHz, preamplifier off, attenuation = 10 dB, -50 dBm < input level ≤ 0 dBm, fc > 10 MHz, 20℃ to 30℃ | |||||
| ＜ 0.7 dB | ||||||
| Tracking Generator (optional) | ||||||
| Frequency Range | XSA805（TG） | 100 kHz to 500 MHz | ||||
| XSA810（TG） | 100 kHz to 1 GHz | |||||
| XSA815（TG） | 100 kHz to 1.5 GHz | |||||
| Output power level range | -40 dBm to 0 dBm | |||||
| Output level resolution | 1 dB | |||||
| Output flatness | Relative to 50 MHz | |||||
| ± 3 dB | ||||||
| Tracking generator spurious | Harmonic spurious | -30 dBc (Tracking generator output power -10 dBm) | ||||
| Non-harmonic spurious | -40 dBc (Tracking generator output power -10 dBm) | |||||
| Tracking generator to input terminal isolation | -60 dB (Tracking generator output power 0 dBm) | |||||

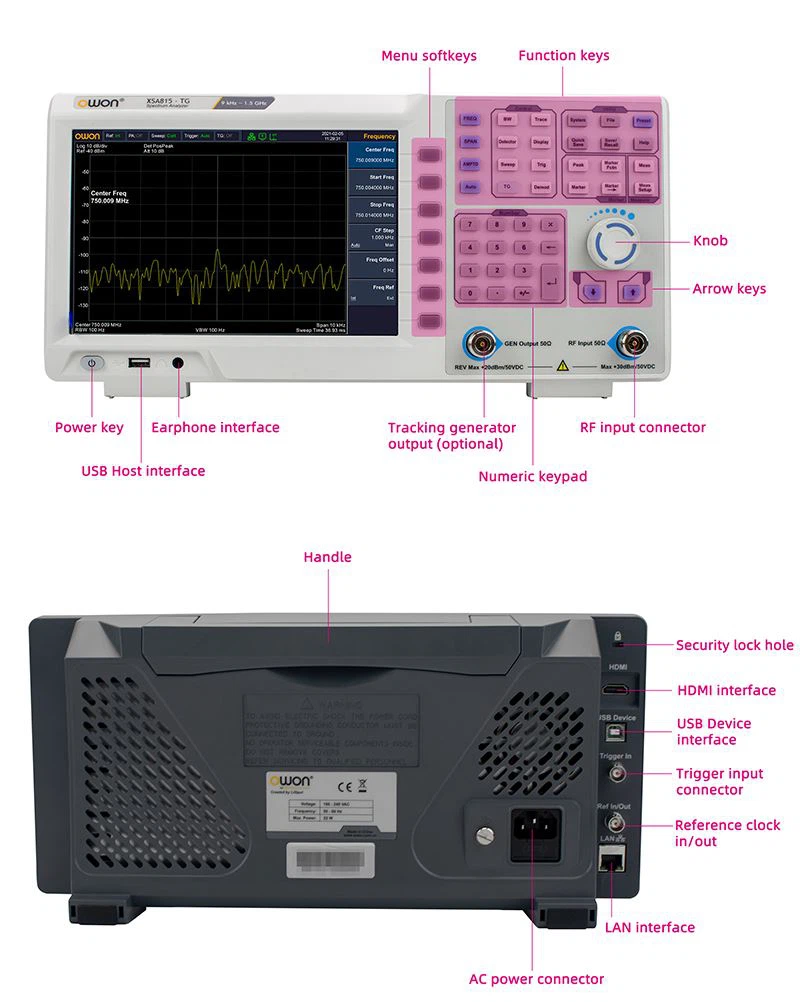

| Interface | ||||||
| USB Host, USB Device, LAN, earphone interface, HDMI | ||||||
| Display | ||||||
| 9-inch TFT LCD, 1280 x 800 pixels | ||||||
| Appearance | ||||||
| Dimensions | 375 mm (W) × 185 mm (H) × 120 mm (D) | |||||
| Weight | Approx. 3.7 kg (main device) | |||||
