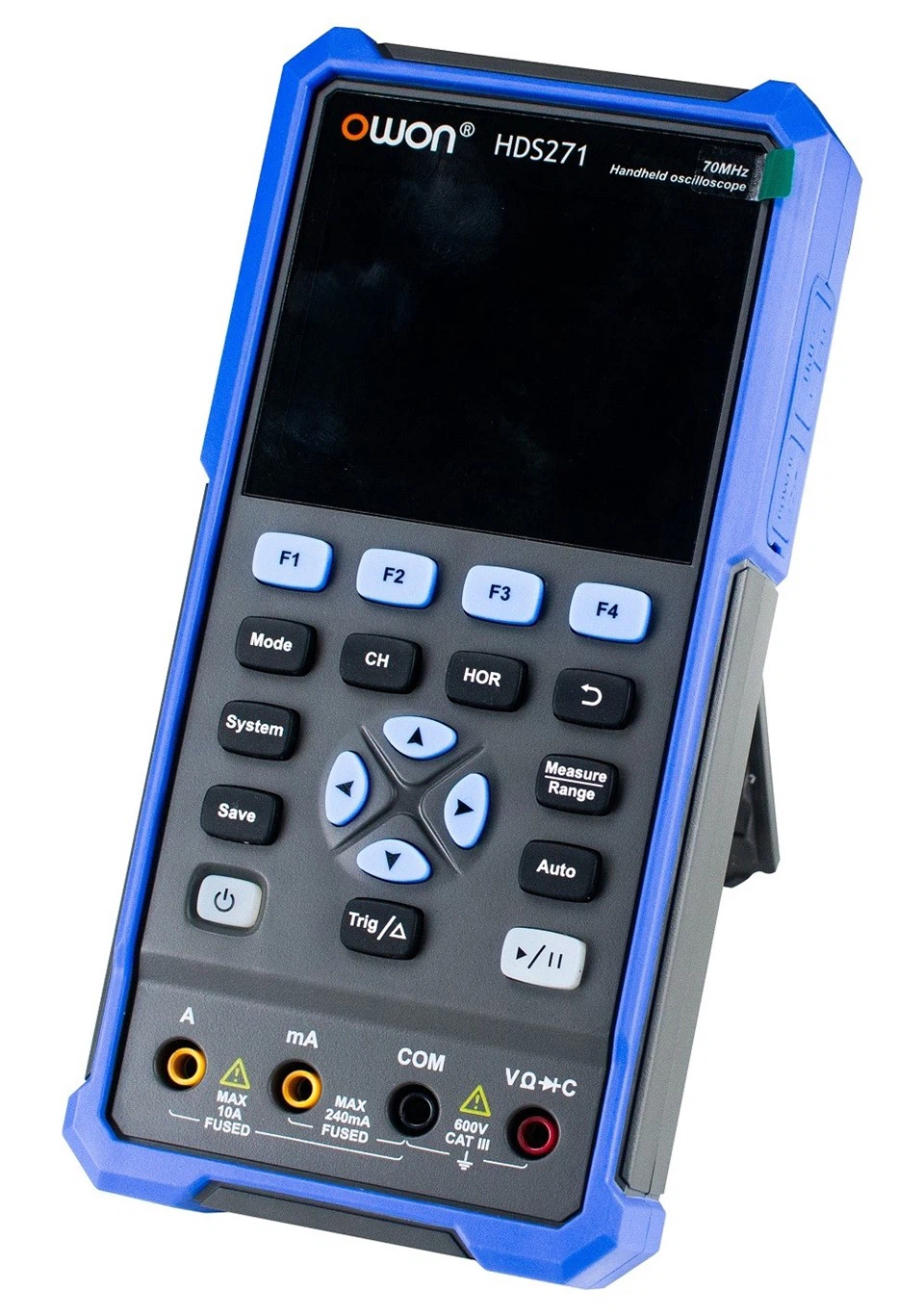

OWON HDS241/HDS271 Series Digital Oscilloscope

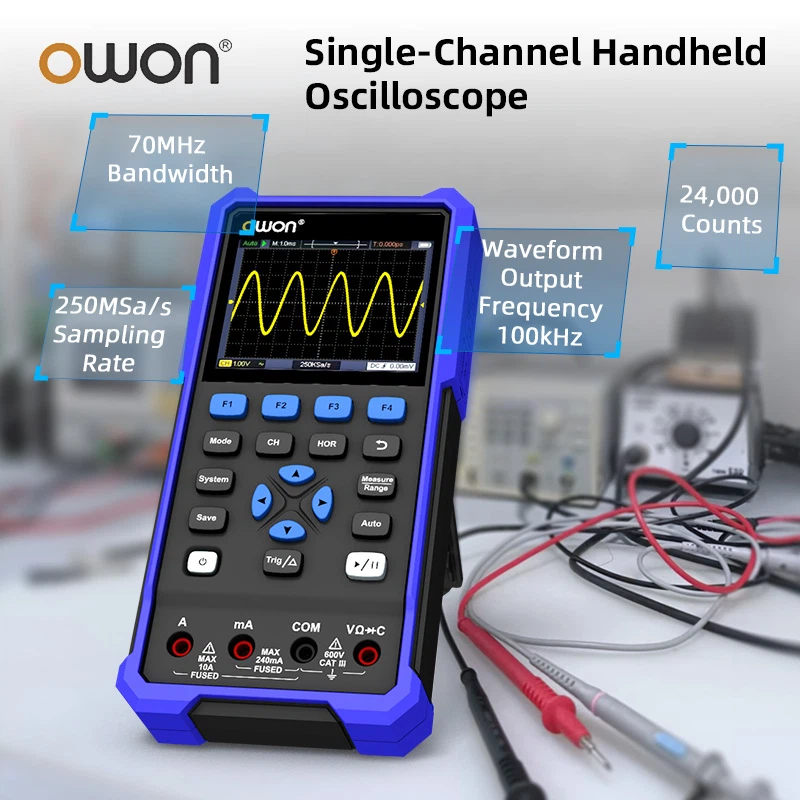

+ Maximum bandwidth of 70MHz and real-time sampling rate up to 250MSa/s
+ 24000counts display, supports voltage, current, resistance, capacitance,diode. and continuity testing
+Maximum waveform output frequency: 100kHz
+Supports sine wave, square wave, sawtooth wave,and pulse wave outputs

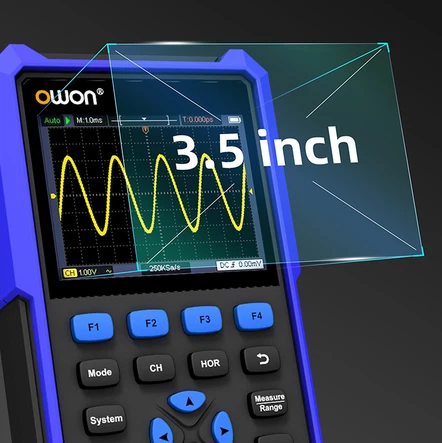

+ 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
+ USB Type-C interface, support power bank, support PC software connection
+ SCPI supported, facilitate secondary development
Oscilloscope
+ Waveform refresh rate up to 10,000wfms/s
+ Maximum bandwidth of 70MHz and real-time sampling rate up to 250MSa/s
+ Auto setup and multiple measurement functions enhance signal analysis efficiency with fast response speeds
+ Maximum record length of 8K
+ Cursor measurement functionality
+ Slow sweep mode for long-term signal monitoring and capturing slow or periodic waveform trends
Multimeter
+ 4 1/2-digit True RMS
+ Supports voltage, current, resistance, capacitance, diode, and continuity testing
+ Auto-ranging for convenient measurement and debugging
+ Maximum input voltage: AC 750V, DC 1000V
+ Data hold function
Waveform Generator
+ Maximum waveform output frequency: 100kHz
+ Supports sine wave, square wave, sawtooth wave, and pulse wave outputs
+ Maximum output amplitude: 2.5Vpp
Excellent Visuals
Versatile for Multiple Applications
Featuring a high-resolution, high-contrast color LCD display, this device delivers exceptional clarity for waveform visualization.

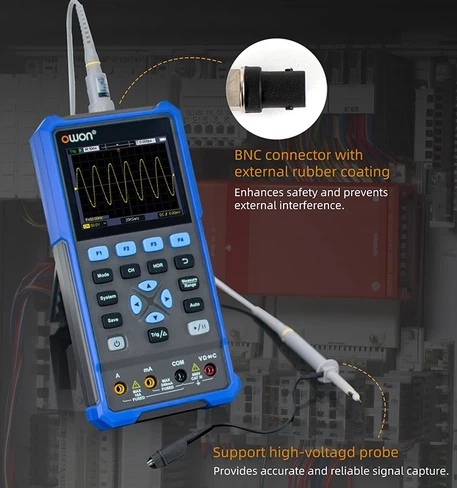

Capable of Testing High Voltages
Designed for rigorous safety assurance, this system is capable of testing high voltages up, ensuring secure operation in industrial and energy applications, backed by certifications for global market access.
Enduring Performance
Low power design with a high-capacity lithium battery.
Not enough battery life?
Standard Type-C port
Connect a power bank and use it as long as you need!

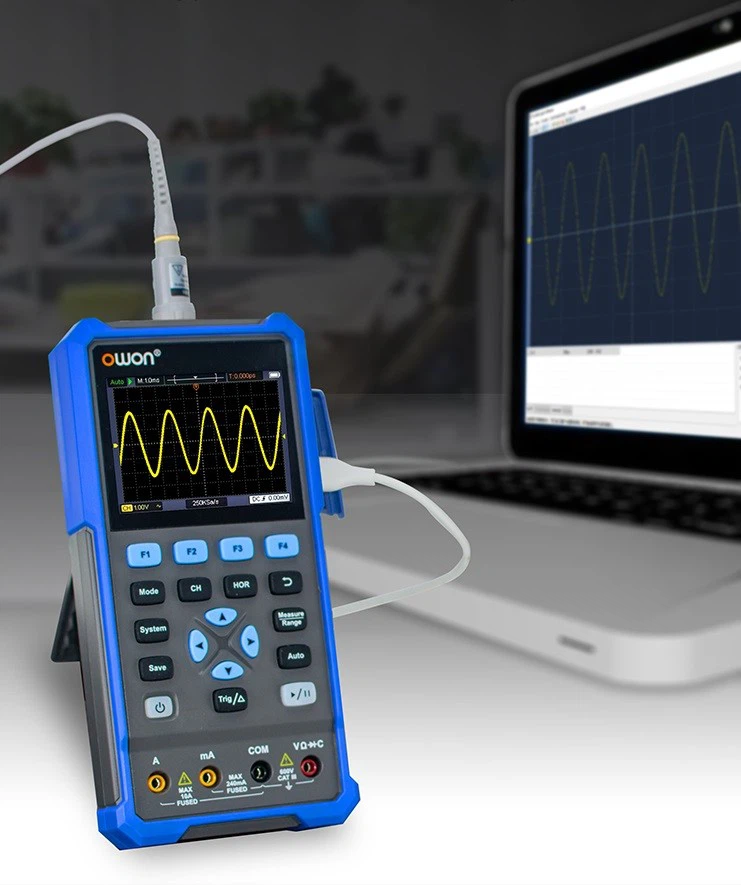

Easy Data at Your Fingertips
Connect to a computer via USB to save waveform images and data for easy further analysis, making your work more efficient and professional!
「Oscilloscope」Specifications
|
Model |
HDS241 |
HDS271 |
|
Bandwidth |
40MHz |
70MHz |
|
Channel |
1 |
|
|
Sampling rate |
250MSa/s |
|
|
Sampling method |
Sampling, peak detection |
|
|
Record length |
4K or 8K |
|
|
Display |
3.5-inch LCD |
|
|
Waveform refresh rate |
10,000wfms/s |
|
|
Input coupling |
DC, AC, GND |
|
|
Probe attenuation |
1X,10X,100X,1000X,10000X |
|
|
Maximum input voltage |
400V (DC+AC, PK-PK) |
|
|
Sweep speed range (s/div) |
5ns/div-1000s/div, Step by1-2-5 |
|
|
Sensitivity (Volt/div) range |
10mV/div~10V/div |
|
|
Trigger Type |
Edge |
|
|
Automatic measurement |
Period, Frequency, Mean, PK-PK, Max, Min, Amplitude, RMS |
|
|
Cursor measurement |
ΔV, ΔT |
|
|
Interface |
USB Type-C |
|
「Multimeter」Specification
|
Digital display |
24000 readings |
||
|
Measurement type |
Voltage, Current, Resistance, Capacitance, Continuity, Diode |
||
|
Maximum input voltage |
AC:750V DC:1000V |
||
|
Maximum input current |
AC:10A DC:10A |
||
|
Diode test |
0-2V |
Continuity |
<50Ω |
|
Auto range |
√ |
TRMS |
√ |
「Waveform Generator」Specification
|
Output Frequency |
Sine, Square, Ramp |
10Hz~100kHz, Step by1-2-5 |
|
Pulse |
10Hz~10kHz, Step by1-2-5 |
|
|
Amplitude |
1Vpp or 2.5Vpp |
|
