Handheld Digital Oscilloscope
+ USB Type-C interface, support power bank, support PC software connection
+ Self-calibration function
+ SCPI supported, facilitate secondary development
HDS200 Series 2-CH Handheld Oscilloscope
*Oscilloscope + multimeter + waveform generator, multifunction in one
*3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
*18650 lithium battery power, providing up to 6 hours working time
*USB Type-C interface, support power bank, support PC software connection
*Self-calibration function
*SCPI supported, facilitate secondary development
Variety Of Functions in one
Oscilloscope
+ Max 10,000 wfms/s waveform refresh rate

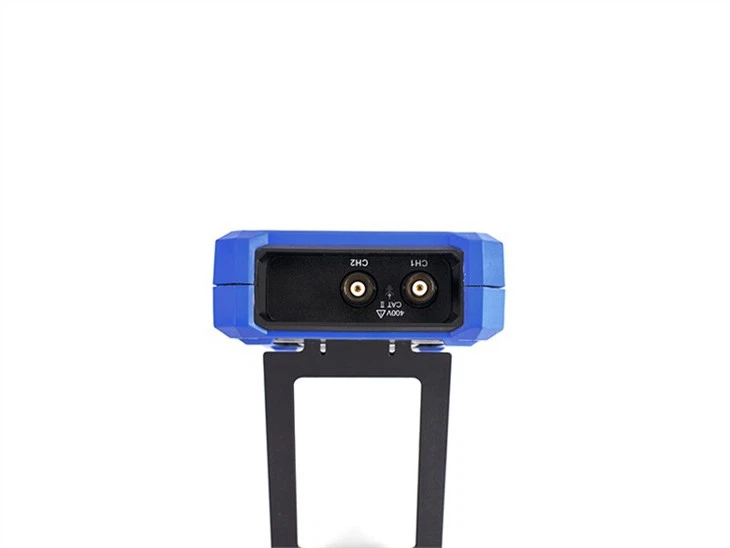

+ Dual channels input, bandwidth up to 70 MHz, max.
real-time sampling rate 250MSa/s
+ Max 8k record length
+ Cursor measurement function
+ Multiple auto measurement functions
+ XY function
+ One-key auto set function, easy to detect and debug
Multimeter
+ 20,000 counts, true RMS
+ Voltage, current, resistance, diode, capacitance measuring, and continuity test
+ Auto range function, easy to detect and debug
+ Max AC 750V, DC 1000V input voltage
+ Independent input of multimeter and oscilloscope
+ Reading hold function
+ Relative measurement function
Waveform Generator (Only for HDS242S & HDS272S)
+ Max 25MHz frequency output
+ Output sine, square, ramp, pulse, and built-in special waveforms
+ 0.1Hz frequency resolution
+ 14-bit vertical resolution, 125MSa/s high sampling rate
+ 8k waveform length
+ Max 5Vpp output amplitude
Small size, powerful functions
Excellent Power Management
Ultra-low comprehensive power consumption less than 3W. Powered by 4400mAh lithium battery, work continuously for about 6 hours. A single battery can supply power normally. Easy battery replacement.
USB Type-C interface can be charged by an adapter or a power bank, and supports PC software connection.
Excellent oscilloscope performance
|
Two acquisition modesPeak detect is used for the detection of the jamming burr and the possibility ofreducing the confusion. |
|
|
High refresh, deep storage Max 10,000 wfms/s refresh rate, 8k record length, easy to capture exceptional and low probability events. |
|
|
7 kinds of auto measurement Frequency, Period, Amplitude, Max, Min, Mean, and PK-PK. Max 6 auto measurements can be displayed on the screen at the same time. |
|
|
Cursor measurement function Supports measuring the voltage difference between cursors (△V) and the time difference between cursors (△T). |
|
|
Save function Save 4 settings, 4 reference waveforms, 4 waveform images,4 CSV waveform files.The reference waveform can be displayed on the same screen as the measured waveform, convenient for waveform comparison.Connect to the computer through the USB Type-C interface,the computer can recognize the oscilloscope as a USB flash drive, and you can access the images or CSV waveform files to view, analyze or share the waveform data. |
|
20,000 Counts Multimeter with True RMS
Support measuring voltage, current, resistance, diode, capacitance, and continuity test.
20,000 counts, high-precision professional multimeter, support relative value measurement.
Waveform Generator Functions
Output sine, square, ramp, pulse, and built-in special waveforms.
Support 8 built-in special waveforms, including Sinc, Bessely, Besselj, StairUp, StairUpDown, StairDown, AttAlT, AmpAlT.(Only for HDS242S & HDS272S)
Specifications
| Model | HDS242 | HDS272 | HDS242S | HDS272S |
| Bandwidth | 40MHz | 70MHz | 40MHz | 70MHz |
| Channels | 2-CH Oscilloscope | 2-CH Oscilloscope+1-CH Generator | ||
| Sample Rate | 250MSa/s | |||
| Acquisition Model | Normal, Peak detect | |||
| Record Length | 8K | |||
| Display | 3.5-inch LCD | |||
| Waveform Refresh Rate | 10,000 wfrms/s | |||
| Input Coupling | DC, AC, and Ground | |||
| Input Impedance | 1 MΩ±2%, in parallel with 16pF±10pF | |||
| Probe Attenuation Factors | 1X,10X,100X,1000X,10000X | |||
| Max. input Voltage | 400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation) | |||
| Bandwidth Limit (typical) | 20MHz | |||
| Horizontal Scale | 5ns/div - 1000s/div, step by 1 - 2 - 5 | |||
| Vertical Sensitivity | 10mV/div - 10V/div | |||
| Vertical Resolution | 8 bits | |||
| Trigger Type | Edge | |||
| Trigger Modes | Auto, Normal, single | |||
| Automatic Measurement | Period, Frequency, Mean, PK-PK, Max, Min | |||
| Cursor Measurement | ΔV, ΔT, ΔT&ΔV between cursors | |||
| Communication Interface | USB Type-C | |||
「Multimeter」Specifications (Standard)
| Max. Resolution | 20,000 counts |
| Testing Mode | Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test |
| Input Impedance | 10MΩ |
| Max Input Voltage | AC 750V, DC 1000V |
| Max Input Current | DC : 10A AC : 10A |
| Diode | 0 - 2V |
「Waveform Generator」Specifications(Only for HDS242S & HDS272S)
Frequency Output |
Sine | 0.1Hz - 25MHz |
| Square | 0.1Hz - 5MHz | |
| Ramp | 0.1Hz - 1MHz | |
| Pulse | 0.1Hz - 5MHz | |
| Arbitrary | 0.1Hz - 5MHz | |
| Sampling Rate | 125MSa/s | |
| Channel | 1-CH | |
| Amplitude Range | 20 mVpp - 5 Vpp | |
| Waveform Length | 8K | |
| Vertical Resolution | 14bits | |
| Output Impedance | 50Ω | |
Accessories and Packaging
About OWON
Since 1990, Lilliput steps into the electronics product industry, its 1st product series is mini color LCD.
Owned by Lilliput, OWON SmartTest product line has been created to "Meeting your needs" in the test and measurement equipment field.
Through 2 decades' efforts, Lilliput gradually grows to be a group corporation, covering 3 product lines - mini color LCD, test and measurement equipment, and home energy management system.
OWON product could be found in Asia, North America, Europe, South America, Oceania, and Africa, with global partners established in more than 80 countries/ regions.
Lilliput (OWON) spares no efforts to be one of the top test and measurement equipment original equipment manufacturers in the worldwide range.
Model |
HDS242 |
HDS272 |
HDS2102 |
HDS2202 |
HDS242S |
HDS272S |
HDS2102S |
HDS2202S |
||
|
Bandwidth |
40MHz |
70MHz |
100MHz |
200MHz |
40MHz |
70MHz |
100MHz |
200MHz |
||
|
Channels |
2-CH Oscilloscope |
2-CH Oscilloscope+1-CH Generator |
||||||||
|
Sample Rate |
250MSa/s |
500MSa/s |
1GSa/s |
250MSa/s |
500MSa/s |
1GSa/s |
||||
| Acquisition Model |
Normal, Peak detect |
|||||||||
|
Record Length |
8K |
|||||||||
|
Display |
3.5-inch LCD |
|||||||||
|
Waveform Refresh Rate |
10,000 wfrms/s |
|||||||||
|
Input Coupling |
DC, AC, and Ground |
|||||||||
|
Input Impedance |
1 MΩ±2%, in parallel with 16pF±10pF |
|||||||||
|
Probe Attenuation Factors |
1X,10X,100X,1000X,10000X |
|||||||||
|
Max. input Voltage |
400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation) |
|||||||||
|
Bandwidth Limit (typical) |
20MHz |
|||||||||
|
Horizontal Scale |
5ns/div - 1000s/div, step by 1 - 2 - 5 |
2ns/div - 1000s/div, step by 1 - 2 - 5 |
5ns/div - 1000s/div, step by 1 - 2 - 5 |
2ns/div - 1000s/div, step by 1 - 2 - 5 |
||||||
|
Vertical Sensitivity |
10mV/div - 10V/div |
|||||||||
|
Vertical Resolution |
8 bits |
|||||||||
|
Trigger Type |
Edge |
|||||||||
|
Trigger Modes |
Auto, Normal, single |
|||||||||
|
Automatic Measurement |
Frequency, Period, Amplitude, Max, Min, Mean, PK-PK |
|||||||||
|
Cursor Measurement |
ΔV, ΔT, ΔT&ΔV between cursors |
|||||||||
|
Communication Interface |
USB Type-C |
|||||||||
「Multimeter」Specifications (Standard)
| Max. Resolution | 20,000 counts |
| Testing Mode | Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test |
| Input Impedance | 10MΩ |
| Max Input Voltage | AC 750V, DC 1000V |
| Max Input Current | DC : 10A AC : 10A |
| Diode | 0 - 2V |
「Waveform Generator」Specifications(Only for HDS242S, HDS272S, HDS2102S, HDS2202S)
Frequency Output |
Sine | 0.1Hz - 25MHz |
| Square | 0.1Hz - 5MHz | |
| Ramp | 0.1Hz - 1MHz | |
| Pulse | 0.1Hz - 5MHz | |
| Arbitrary | 0.1Hz - 5MHz | |
| Sampling Rate | 125MSa/s | |
| Channel | 1-CH | |
| Amplitude Range (high impedance) | 20 mVpp - 5 Vpp | |
| Waveform Length | 8K | |
| Vertical Resolution | 14bits | |
| Output Impedance | 50Ω | |
