Clamp Current Probe
We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' AC/DC clamp current probe, oscilloscope probe 10x, high voltage differential probe, isolated oscilloscope probe with cheap price from us. We have many products in stock at your...
Send Inquiry
Chat Now
Product Introduction
We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' AC/DC clamp current probe, oscilloscope probe 10x, high voltage differential probe, isolated oscilloscope probe with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now

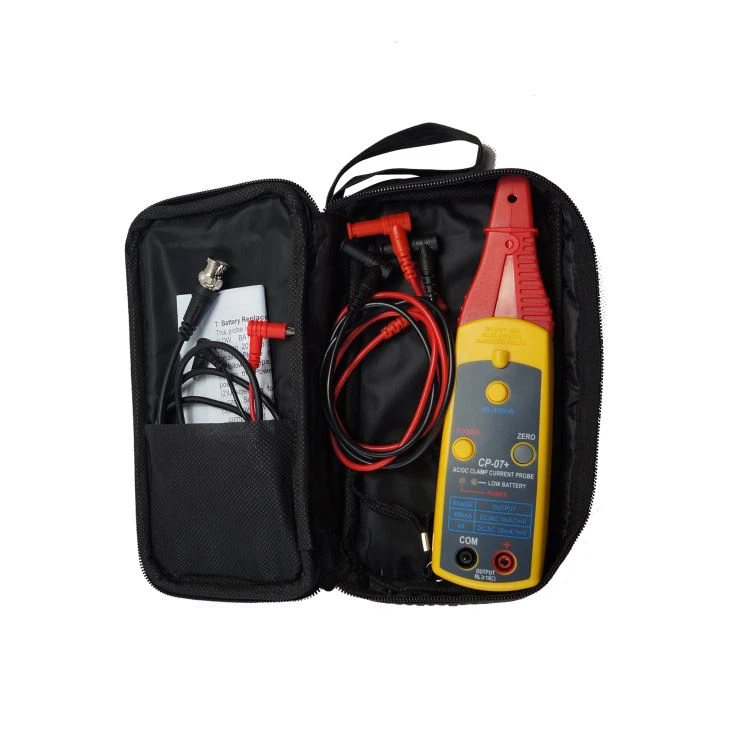

CP-07+ applies to all the OWON oscilloscope product lines.
| Model | CP-07+ | ||
|---|---|---|---|
| Test Range | 400mA - 4A | ||
| Resolution | 0.1mA | ||
| Bandwidth | DC 1MHz (±3dB） | ||
| Jaw Size | 5mm (max) | ||
| Auto Zero at Power-on | √ | ||
| Power Supply | 9V 6F22 Battery | ||
| Operating Temperature | 0℃ to 50℃ | ||
| Operating Humidity | 15% to 70% RH | ||
| DC Current | Range | DCA 400mA | DCA 4A |
| Accuracy | ±1.5%rdg ± 5-digit | ||
| Sensitivity | 1mV/1mA | 1mV/10mA | |
| AC Current | Range | ACA 400mA | ACA 4A |
| Accuracy | ±2.0%rdg ± 5-digit | ||
| Sensitivity | 1mV/1mA | 1mV/10mA | |
| Dimension (W x H x D) | 215 x 36 x 58mm | ||
| Device Weight | 200g | ||
About Owon
| Model | CP-07+ | ||
|---|---|---|---|
| Test Range | 400mA - 4A | ||
| Resolution | 0.1mA | ||
| Bandwidth | DC 1MHz (±3dB） | ||
| Jaw Size | 5mm (max) | ||
| Auto Zero at Power-on | √ | ||
| Power Supply | 9V 6F22 Battery | ||
| Operating Temperature | 0℃ to 50℃ | ||
| Operating Humidity | 15% to 70% RH | ||
| DC Current | Range | DCA 400mA | DCA 4A |
| Accuracy | ±1.5%rdg ± 5-digit | ||
| Sensitivity | 1mV/1mA | 1mV/10mA | |
| AC Current | Range | ACA 400mA | ACA 4A |
| Accuracy | ±2.0%rdg ± 5-digit | ||
| Sensitivity | 1mV/1mA | 1mV/10mA | |
| Dimension (W x H x D) | 215 x 36 x 58mm | ||
| Device Weight | 200g | ||
