HSA1000 Series Handheld Spectrum Analyzer
+ -160dBm Displayed Average Noise Level
+ Phase Noise -82dBc/Hz @1Gz and offset at 10KHz
+ Total Amplitude Accuracy <1.5dB
+ 10Hz Minimum Resolution Bandwidth (RBW)
+ Standard GPS receiver
+ EMI Pre-compliance Test Kit
+ Up to 3.6 GHz Tracking Generator Kit
+ 8 inches IPS touchscreen display, wider viewing angle
+ Li-ion battery, operating life upto 4-6 hours
HSA1000 Series Handheld Spectrum Analyzer
● Frequency range 9 kHz to 1.6GHz/3.6GHz
● -160 dBm DANL (Displayed Average Noise Level)
● Phase Noise < –80 dBc/Hz @1GHz at 10 kHz offset
● 10Hz Minimum Resolution Bandwidth (RBW)
● Total Amplitude Accuracy <1.5 dB
● Provide EMI pre-compliance test function, optional EMC test software
● Standard Pass/Fail on-site test alert ability
● Li-ion battery, operating life up to 4 - 6 hours, easy replacement, you can purchase extra batteries for longer test time.
● Optional 1.6GHz/3.6GHz tracking generator, 3.6GHz signal generator
● Standard GPS receiver, optional antenna, the latitude/longitude information and test information can be recorded
● 8-inch (1024*768) IPS LCD touchscreen, wider viewing angle, built-in light sensor to adjust the screen backlight according to the environmental light.
More convenient and efficient for field testing
8-inch IPS LCD, wider viewing angle, built-in light sensor to adjust the screen backlight according to the environmental light, provides a superior, bright, and clear trace for indoor and outdoor use. There is no need to operate in the shade.
Excellent power management function

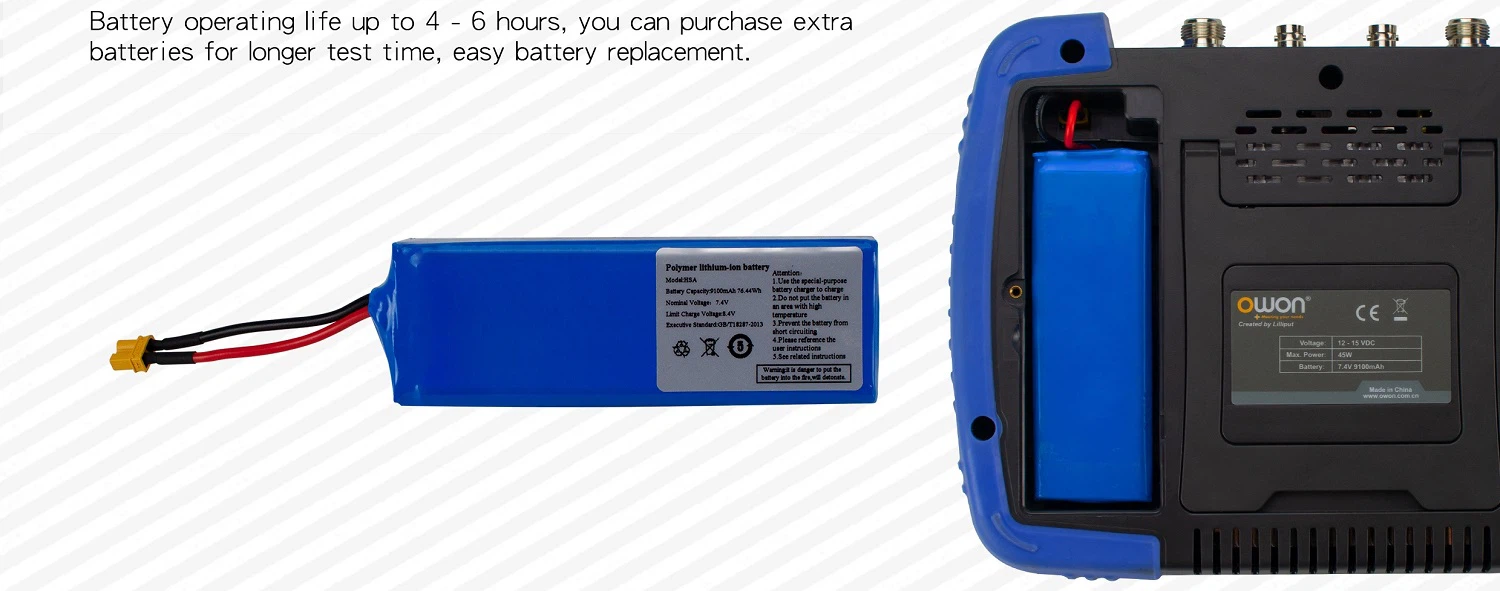

Battery operating life up to 4 - 6 hours, you can purchase extra batteries for longer test time, easy battery replacement.
Excellent small signal measurement capability
-160 dBm DANL (Displayed Average Noise Level), can observe weaker small signals
More accurate low-noise measurements
Phase Noise < –80 dBc/Hz @1GHz at 10 kHz offset
Pass/Fail function
Quickly determine if the test results pass
Provides EMI pre-compliance test function
Equipped with EMI filter (6dB) and peak detector as standard, it is more accurate for EMI pre-test and diagnosis, and complete testing and production reports can be completed by using supporting software.
Provide EMC test function (requires optional software)
Built-in more than 200 mainstream EMC test standards and regulations templates. The user selects the corresponding template, and the software automatically sets the spectrum analyzer and records the test data. The data and regulations can be compared on the same screen. Users can also customize regulations for comparative analysis.
Provide multiple extended function modes
Standard modulation signal quality analysis, audio demodulation, field strength measurement, channel measurement and frequency counter, etc. multiple general and extended test functions.

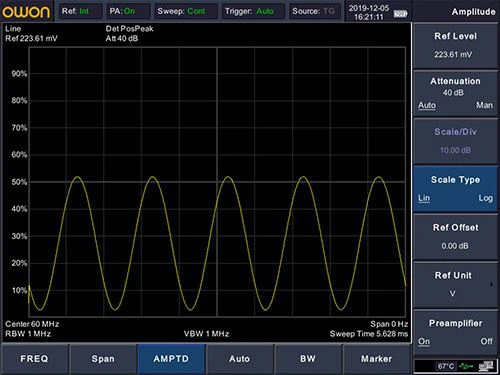

modulation signal quality analysis

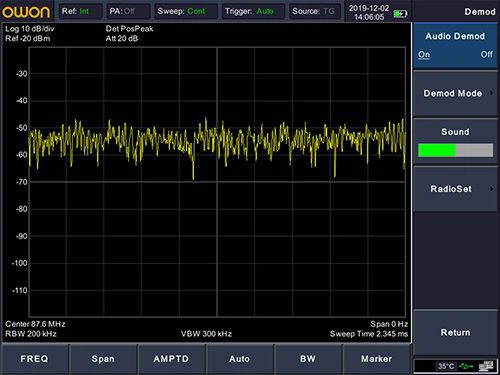

audio demodulation
channel measurement
frequency counter
Waterfall plot graphic
View the behavior of varying signal parameters over time, track the frequency and power behavior over time, particularly intermittent signals. The user can use waterfall plot graphic to analyze the stability of a signal over time or to identify intermittent interference signals in communications systems.
Provide GPS positioning function
Standard GPS antenna connector, optional OWON GPS antenna, the latitude/longitude information, and measurement data can be saved as CSV file.
Specifications
Model | HSA1015(TG) | HSA1036(TG) |
Frequency Range | 9kHz - 1.5 GHz | 9kHz - 1.5 GHz, 9kHz - 3.6 GHz |
Frequency Resolution | 1Hz | |
Aging rate | <1ppm/Year | |
Phase Noise (fc=1GHz) | <-80 dBc/Hz @10 kHz offset | |
Resolution Bandwidth (-3dB) (RBW) | 10 Hz to 500 kHz (1-10 steps by sequence), 1 MHz, 3 MHz | |
Video Bandwidth(-3dB)(VBW) | 10Hz to 3MHz | |
| (Input Attenuation= 0 dB, Sample Detector, Trace Average ≥20, 20℃ to 30℃, Input Impedance=50 Ω, RBW normalizes to 1Hz) | |
1MHz-10MHz | -160dBm (Typical) | |
10MHz-1GHz | -160dBm (Typical) | |
1GHz-1.5GHz | -158dBm (Typical) | |
1GHz-3.6GHz | -158dBm (Typical) | |
Detectors | Positive-peak, negative-peak, sample, normal, RMS | |
Trace functions | Clear write, Max Hold, Min Hold, View, Blank, Average | |
level unit | dBm, dBuW, dBpW, dBmV, dBuV, W, V | |
Tracking generator (-TG Model) | 100 kHz-1.5 GHz | 100 kHz-3.6 GHz (Tracking generator) |
Output power level range | -30 dBm-0 dBm | |
Output power level resolution | 1dB | |
Communication Port | USB HOST, USB DEVICE, LAN, earphone port | |
Display | 8-inch touch LCD | |
