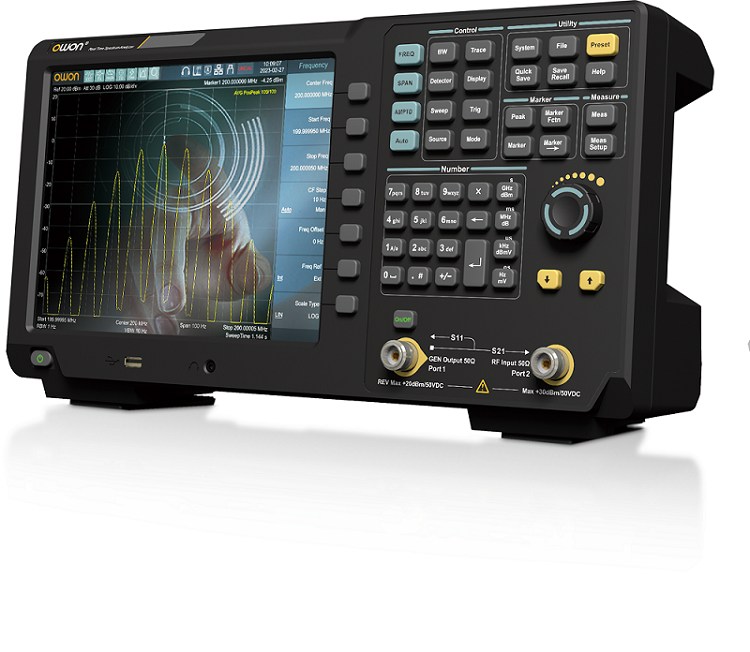

XSA3000-R Series Real Time Spectrum Analyzer

+ Spectrum Analyzer Frequency Range from 9kHz up to 8GHz
+ Vector Network Analyzer Frequency Range from 100kHz up to 8GHz
+ 100% POI 6.25μs, Dynamic Range 60dB
+ -165 dBm/Hz Displayed Average Noise Level (Typ.)
+-106dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
+ 1Hz Minimum Resolution Bandwidth (RBW)
+ Full Amplitude Accuracy < 0.7dB (Typ.)
+ Preamplifier and Tracking Generator Standard
+ Standard 40 MHz, optional 100 MHz Real Time Analysis Bandwidth
+ Distance to Fault Mode (Standard)
+ Multiple display modes (Probability Density Spectrum, Time Power, 3D, etc.) for multi-dimensional viewing of complex transient signals
+ EMI Measurement Software (Opt.)
+ 10.4 inch Multi-Touch Screen , Mouse and Keyboard supported
+ Web Browser Remote Control on PC and Mobile Terminals and File Operation
+ Communication Interfaces: LAN, USB Device, USB Host

Send Inquiry

Chat Now

Product Introduction

Model	XSA3036-R	XSA3060-R	XSA3080-R
Frequency Range	9kHz-3.6 GHz	9kHz-6 GHz	9kHz-8 GHz
Resolution Bandwidth (RBW)	1Hz-5MHz
DANL	-165 dBm/Hz
SSB Phase Noise	-106 dBc/Hz
Third-order Intercept Point(TOI)	+14 dBm
Amplitude Accuracy	＜0.7 dB
Tracking generator	100 kHz-3.6 GHz	100 kHz-6.0 GHz	100 kHz-8.0 GHz
Real-time Analysis Bandwidth	100MHz
Spurious-Free Dynamic Range (SFDR)	60dB
100% Response Shortest Signal Duration	6.25uS
Real-time Spectrum View	Probability Density Spectrum, Waterfall Chart, 3D Spectrum, Time Power Spectrum
Vector Network Analysis,(VNA)	Vector S11, Vector S21
Network Analysis Dynamic Range	90dB
Cable Fault Location	Distance to fault
Advanced Measurement Functions	CHP,ACPR,OBW,CNR,Harmonic,Monitor, CCDF, SEM, TOI
Vector Signal Analysis	AM,FM,ASK,FSK,MSK,PSK,QAM
Electromagnetic Compatibility Testing	EMI Filter and Quasi-Peak Detector,Log Scale and Limit Line
Communication Interfaces	LAN,USB Device,USB Host (USB-GPIB)
Remote Control Capability	SCPI / Labview / lVl based on USB-TMC / VXI-11 / Socket / Telnet
Remote Controller	NI-MAX,Web Browser,Easy Spectrum software,File Explorer
