XDS3000 Series N-In-1 Digital Oscilloscope
+ 40M record length, and 75,000 wfms/s waveform refresh rate
+ low background noise,vertical sensitivity in 1mV/div-10 V/div
+ multi-trigger, and bus decoding function
+ SCPI,and LabVIEW supported Creative New Look
XDS3000 Series N-In-1 Digital Oscilloscope
Super Performance
+ SCPI, and LabVIEW supported
Creative New Look
N-in-1

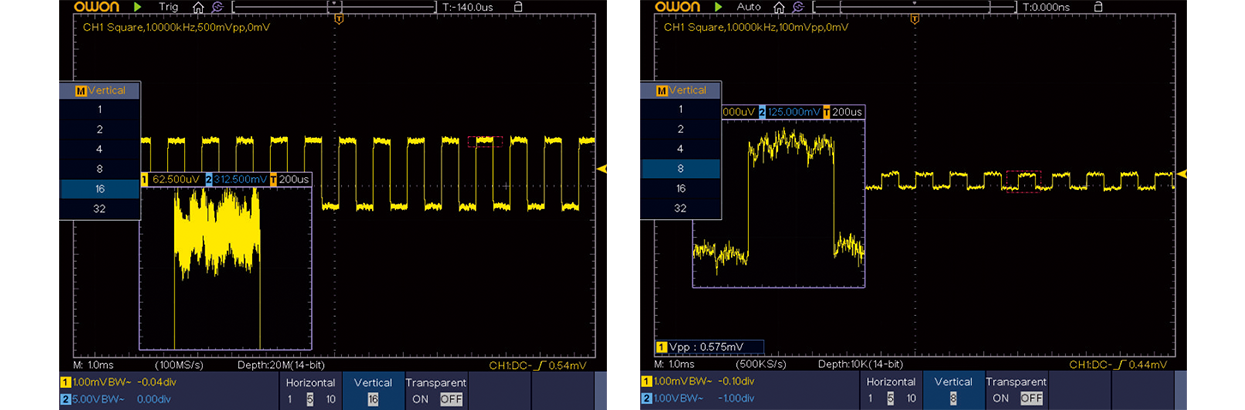

12/14 bits ADC and original magnifier function
XDS series introduce 12 / 14 bits hardware ADC, the precision is 16/64 times against other oscilloscope on market. Equipping with OWON’s original magnifier function, it can observe the signal low down to 31.25μV/div.

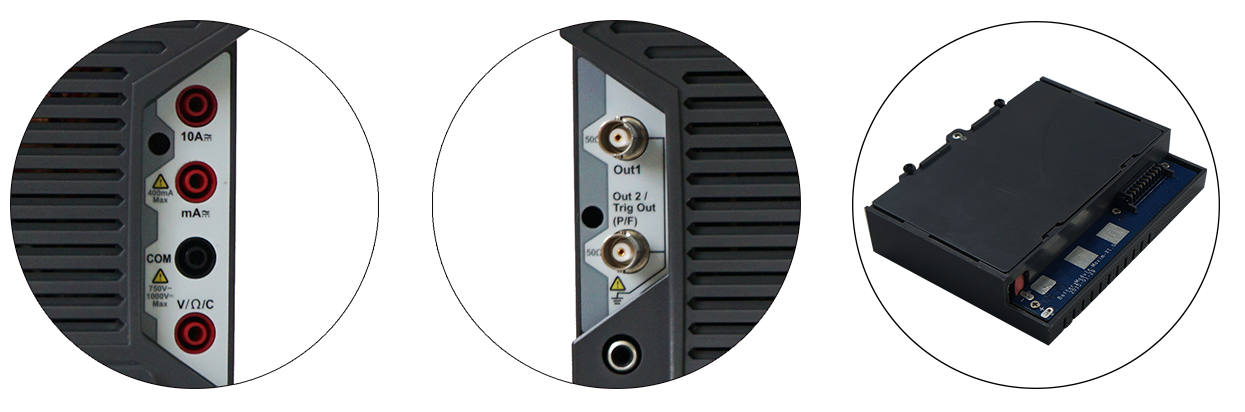

Multi-function mobile tester
Oscilloscope + signal generator + multimeter +data logger +frequency counter + decoder.
Support Li-on battery to implement floating test.
Max 70000 frame/sec waveform refresh rate,multi-level gray scale and color temperature display
platform-restore the waveform datail fully
wiFi function
its built-in WIFI module facilitates mobile device connecting with XDS series product,to get access to remote control,together with simultaneous measurement result display.
multi-touch screen,easy to operate
its multi-point touchscreen improves operation efficiency considerably.
Since 1990, Lilliput steps into the electronics product industry, its 1st product series is mini color LCD.
Owned by Lilliput, OWON SmartTest product line has been created to "Meeting your needs" in the test and measurement equipment field.
Through 2 decades' efforts, Lilliput gradually grows to be a group corporation, covering 3 product lines - mini color LCD, test and measurement equipment, and home energy management system.
OWON product could be found in Asia, North America, Europe, South America, Oceania, and Africa, with global partners established in more than 80 countries/ regions.
Lilliput (OWON) spares no efforts to be one of the top test and measurement equipment original equipment manufacturers in the worldwide range.
| Model | XDS3062A | XDS3102A | XDS3202A | XDS3102 | XDS3202E | XDS3202 | XDS3302 | |
|---|---|---|---|---|---|---|---|---|
| Bandwidth | 60MHz | 100MHz | 200MHz | 100MHz | 200MHz | 300MHz | ||
| Sample Rate | 1GS/s | 2GS/s | 2.5GS/s | |||||
| Vertical Resolution (A/D) | 12 bits | 14 bits | 8bits | |||||
| Record length | 40M | |||||||
| Horizontal Scale (s/div) | 2ns/div - 1000s/div, step by 1 - 2 - 5 | 1ns/div - 1000s/div, step by 1 - 2 - 5 | 2ns/div - 1000s/div, step by 1 - 2 - 5 | 1ns/div - 1000 s/div,step by 1 - 2 - 5 | ||||
| Channel | 2 + 1 (external) | |||||||
| Display | 8" color LCD, 800 x 600 pixels | |||||||
| Trigger Type | Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,and CAN (optional) | |||||||
| Bus Decoding | I2C, SPI, RS232, and CAN (optional) | |||||||
| Communication Interface | USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) | |||||||
| Power Supply | 100V - 240V AC, 50/60Hz, CAT II | |||||||
| Power Consumption | ＜15W | |||||||
| Fuse | 2A, T class, 250V | |||||||
| Battery (optional) | 3.7V, 13200mAh | |||||||
| Dimension (W x H x D) | 340 x 177 x 90 mm | |||||||
| Weight | 2.60 kg | |||||||
| Optional Module / Function | |
|---|---|
| VGA | VGA+AV |
| WIF | WiFi |
| AWG | arb waveform generator |
| DMM | digital multimeter |
| TOU | Touch screen(capacitor-type) |
