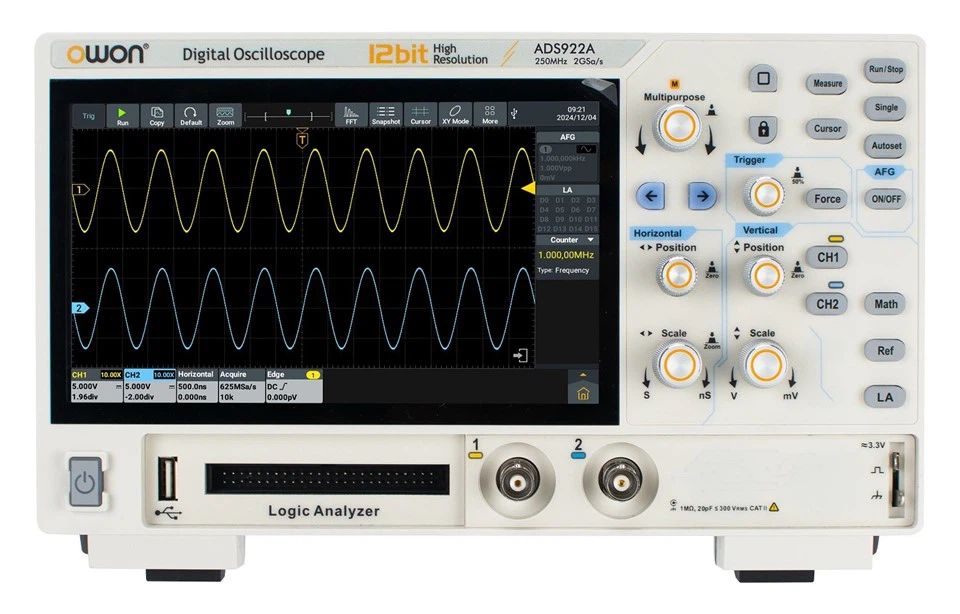

ADS900A Series 12bits Multifunction Digital Oscilloscope

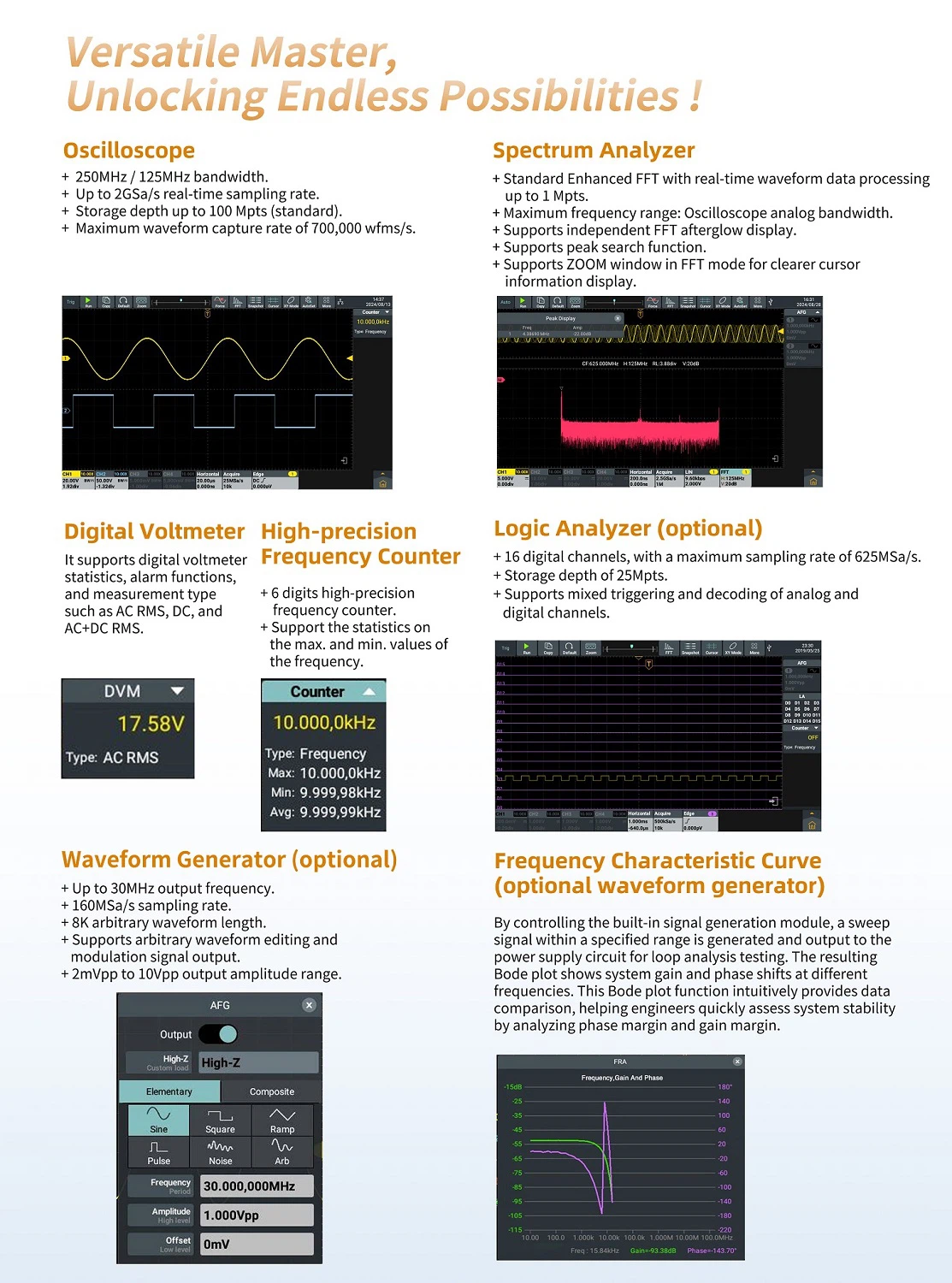

+ Integrates oscilloscope, 30MHz AFG (optional), 16-CH Logical analyzer(optional), frequency counter, voltmeter, FFT spectrum analyzer and protocol analyzer.
+ Based on the OWON X-Vision advanced architecture: lower noise, higher storage, faster refresh.
+ 100M storage depth, up to 700,000wfms/s waveform refresh rate, ensuring clear signal capture.
+ 12-bit Vertical Resolution, vertical sensitivity is 200uV/div-10 V/div.
+ 1M- point FFT analysis ensures accurate frequency component display.
+ Bode plot functions (AFG models).
+ Support for external devices like mouse and keyboard, greatly enhancing efficiency.
+ Enhanced file management for easier viewing, editing, and exporting.

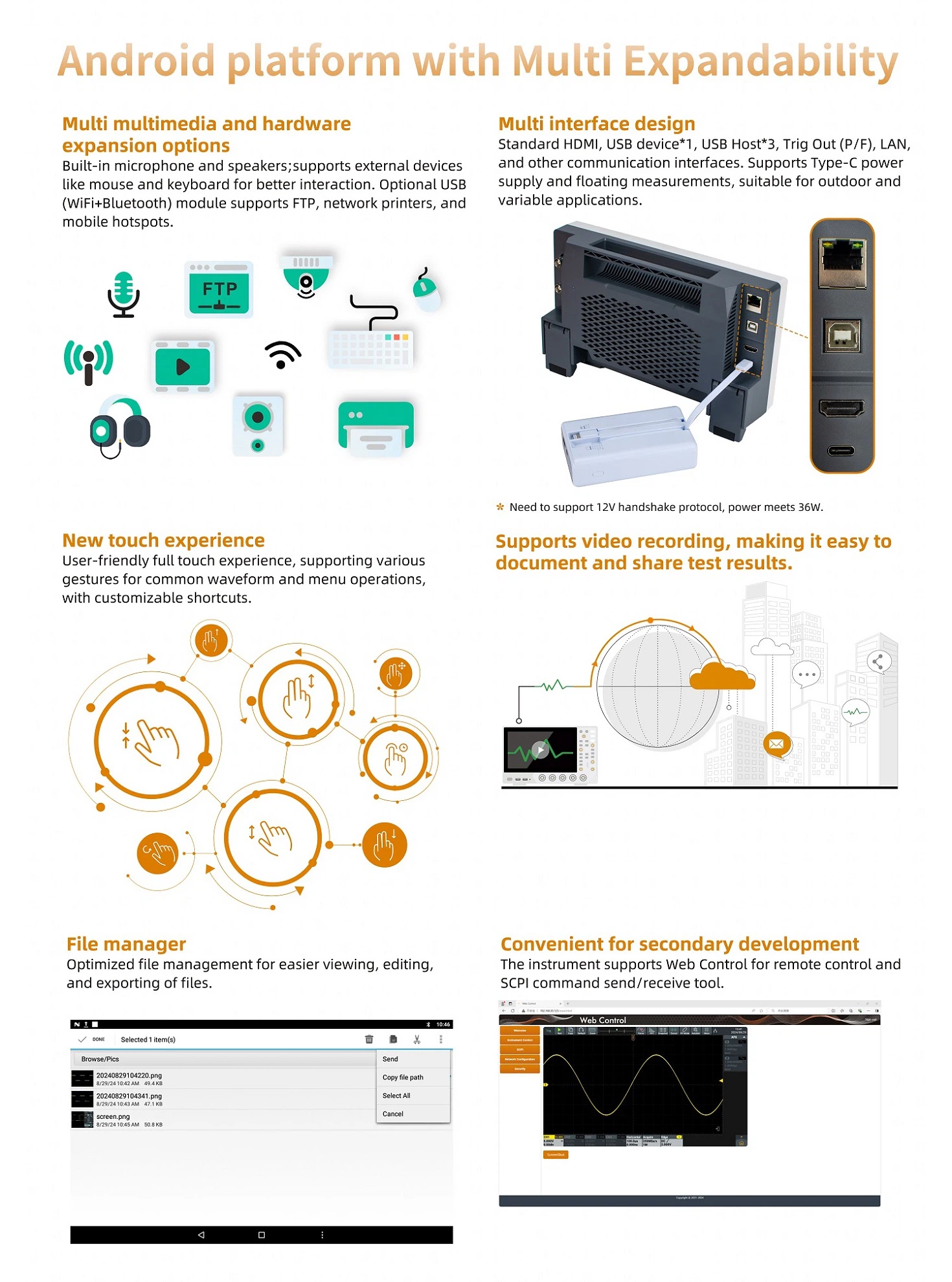

+ Optional wireless module (Wi-Fi/Bluetooth) supports FTP, network printers, mobile hotspots, and more.
+ Ultra-thin design saving valuable workspace.

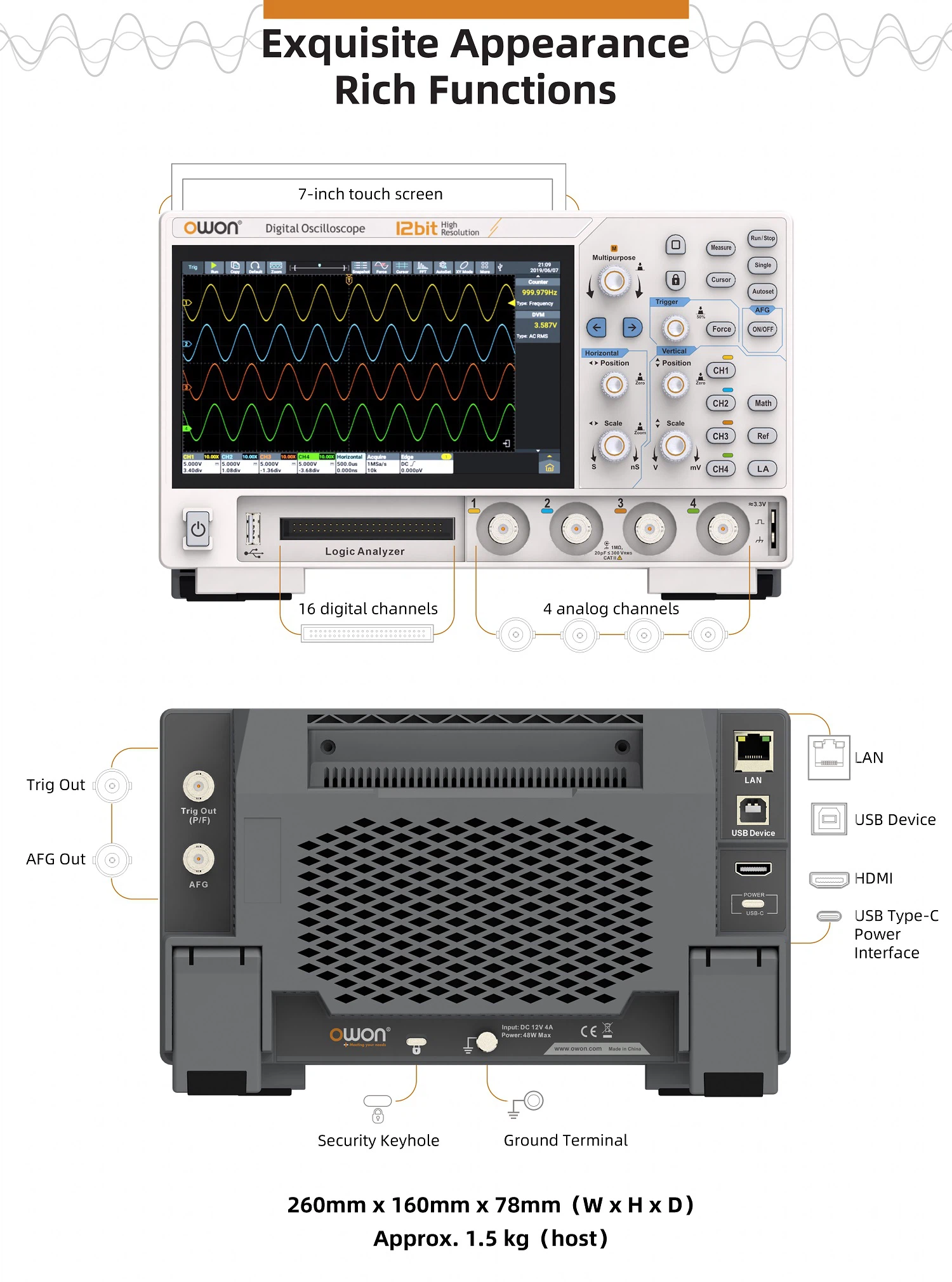

+ 7-inch touchscreen with multi-touch support for an enhanced interactive experience.
