ADS3000A Series 12 Bits Multifunction Digital Oscilloscope

+ Integrates oscilloscope, dual-channel 50MHzAFG (optional),Frequency counter, voltmeter,FFT spectrum analyzer and protocol analyzer.
+ 100MHz-500MHz bandwidth, 2.5GS/s real-time sampling rate.
+ 100M Record Length, up to 500,000wfms/s waveform refresh rate.
+ Vertical Resolution is 12-bit, time base range is 500ps/div-1000s/div.
+ Multi triggering: edge, video, pulse width, slope, under-amplitude,over-amplitude, timeout, Nth edge, logic and RS232/UART,l2C, SPI,CAN, LIN; 2-channel hardware decoding: UART, I2C, SPI, CAN, LIN.
+ Comprehensive Features Waveform Cloning and Bode Plot Functions. (AFG models)
+ Up to 43 auto measurements, math operations, built-in enhanced FFT,and peak search.Enhanced FFT and Zoom features provide clearer waveform display and cursor information.
+ Built-in microphone and speaker, with support for external devices like mouse and keyboard,greatly enhancing efficiency.
+ Enhanced file management for easier viewing, editing, and exporting.
+ Equipped with USB device*1, USB Host*3, Trig Out(P/F), LAN, supporting Web Control and SCPl.
+ Optional wireless module (Wi-Fi/Bluetooth) supports FTP, network printers, mobile hots pots.
+ 10.1-inch touchscreen with multi-touch support for an enhanced interactive experience.

Send Inquiry

Chat Now

Product Introduction

ADS A4 2

Low noise, high sensitivity, and accurate small signal measurements.

Standard vertical resolution from 500μV/div to 10V/div.

Deep storage balances overall view and details

The new standard 100Mpts storage depth allows you to capture longer signal durations and zoom in on details, balancing overall view and details.

Capture anomalies and grasp every detail

In high-speed mode, the oscilloscope's waveform refresh rate reaches up to 500,000wfms/s, ensuring clear capture of signal changes.

256 levels of grayscale display, color afterglow leaves long traces

Assists in observing the signal trends over time, especially when monitoring fast changes or transient phenomena.

12-bit high-precision hardware oscilloscope

The ADS3000A series provides 16 times the accuracy of regular oscilloscopes and includes a zoom feature to magnify signal details in real-time for anomaly analysis.

ADS A4 3

Oscilloscope

500MHz,350MHz,200MHz,100MHz

Up to 2.5GSa/s real-time sampling rate.

2 or 4 analog channels and 1 EXT channel.

Storage depth up to 100 Mpts (standard).

Maximum waveform capture rate of 500,000 wfms/s.

Waveform Generator (optional)bank

50MHz dual-channel output frequency

300MS/s sampling rate

8K arbitrary waveform length

Supports arbitrary waveform editing, modulation, sweep, and pulse signal output.

2mVpp to 10Vpp output amplitude range

Spectrum Analyzer

Standard Enhanced FFT with real-time waveform data processing up to 1 Mpts.

Maximum frequency range: Oscilloscope analog bandwidth.

Supports independent FFT afterglow display.

Supports peak search function.

Supports ZOOM window in FFT mode for clearer cursor information display.

Frequency Characteristic Curve (optional waveform generator)

By controlling the built-in signal generation module, a sweep signal within a specified range is generated and output to the power supply circuit for loop analysis testing. The resulting Bode plot shows system gain and phase shifts at different frequencies. This Bode plot function intuitively provides data comparison, helping engineers quickly assess system stability by analyzing phase margin and gain margin.

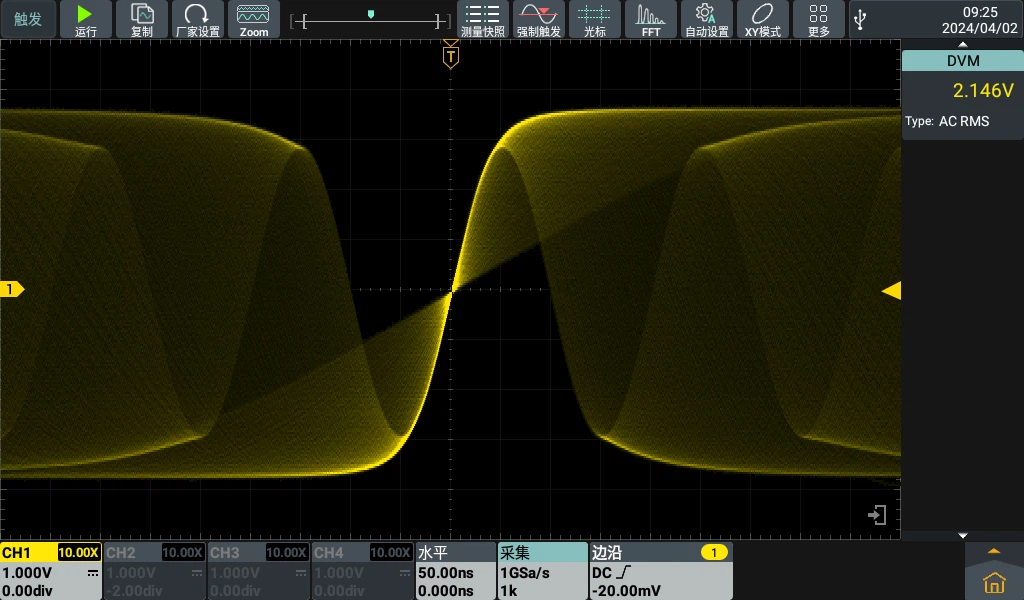

Digital Voltmeter

It supports digital voltmeter statistics, alarm functions, and measurement type such as AC RMS, DC, and AC+DC RMS.

High-precision Frequency Counter

6 digits high-precision frequency counter

Support the statistics on the max. and min. values of the frequency

product-288-255

Protocol Analysis (optional)

Supports dual-channel hardware decoding, including I²C, SPI, CAN, and LIN serial bus decoding

Multi triggering and hardware decoding

upports edge, video, pulse, slope, runt, windows, timeout,
Nth edge, logic, RS232/UART, I2C, SPI, CAN and LIN trigger.
Dual-channel hardware decoding includes UART, I2C, SPI,
CAN, and LIN.

Waveform cloning function

Allows you to fully save the on-site test signal and copy it to the device's signal source output for further analysis and testing.

43 types of measurements, supports advanced math operations

Up to 43 waveform parameters auto-measured, offering full memory hardware measurement and various math functions.

Measurement parameter statistics function

Supports measurement indicators, cursor gating, and more detailed measurement prompts.

Hardware implementation of X-Y mode

Provides XY plotting in high storage depth mode, offering richer details and better signal characterization.

Enhanced Cursor Measurement

Supports both FFT. XY mode and ZOOM windows,providing more intuitive waveform area cursor measurement information.

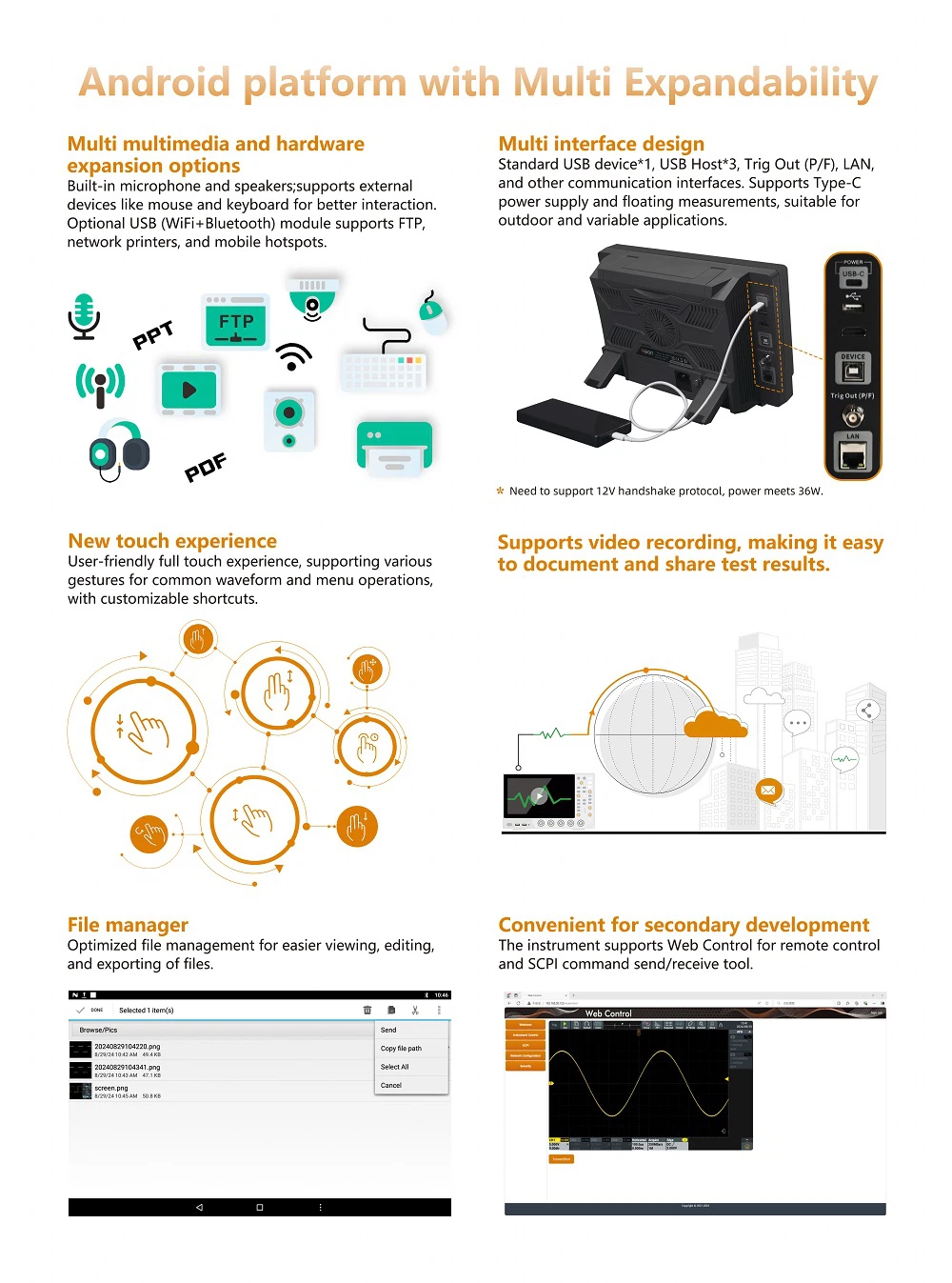

ADS A4 5

ADS A4 6

Specifications

Model	ADS3102A	ADS3202A	ADS3352A			ADS3502A
Bandwidth (-3 dB)	100MHz	200MHz	350MHz			500MHz
Channel	2+EXT
Sample Rate	2.5 GSa/s (single channel) 1.25 GSa/s (dual channel)

Model	ADS3104A	ADS3204A	ADS3354A			ADS3504A
Bandwidth (-3 dB)	100MHz	200MHz	350MHz			500MHz
Channel	4 + EXT
Sample Rate	2.5 GSa/s (single channel) 2.5 GSa/s (dual channel) 1.25 GSa/s (full channel)

Acquire mode	Sample, Peak, High Res, Average, Segmentation		Record Length		100M
Waveform Refresh Rate	Max 500,000 wfms/s		Vertical Resolution		12bits
Scanning speed (S/div)	500μV/div - 10 V/div		Relay time accuracy		±1 ppm (typical)
DC Gain Accuracy	3%(≤1mV), 2%(2 mV), 1.5%(≥5 mV)
Input Impedance	1 MΩ ± 2%, parallel with 15pF ± 5pF, 50Ω ± 2%
Probe attenuation coefficient	1μX-1MX, step by 1-2-5, support custom
Trigger type	Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth, Logic, RS232/UART, I2C, SPI CAN, LIN
Bus Decoding	RS232 / UART, I2C, SPI, CAN, LIN
Auto measurement	Period, Frequency, +Width, -Width, Rise Time, Fall Time, Scr Duty, +Duty,-Duty, Vavg, Vpp, VRMS, Overshoot, Vmax, Vmin, Vtop, CycRms, Vbase, Vamp, Preshoot, Std Dev, +Pulse Cnt, -Pulse Cnt, Rise Cnt, Fall Cnt, Area, Cyc Area, Delay(A↑-B↑), Delay(A↑-B↓), Delay(A↓-B↑), Delay(A↓-B↓), Phase(A↑-B↑), Phase(A↑-B↓), Phase(A↓-B↑), Phase(A↓-B↓),FRR(A↑-B↑), FRF(A↑-B↓), FFR(A↓-B↑), FFF(A↓-B↓), LRR(A↑-B↑), LRF(A↑-B↓), LFR(A↓-B↑),LFF(A↓-B↓)
Waveform Math	+, -, *, /, &&, \|\|, ^, !, Intg, Diff, Sqrt, Function operation (Lg / Ln / Exp / Abs / Sine / Cosine / Tan), FFT, FFT rms, User Defined, digital filter (low pass, high pass, band pass, band reject)
Frequency counter	6-digit frequency counter; Maximum frequency: maximum analog bandwidth of oscilloscope
Voltmeter	Support DC, AC+DCrms, ACrms;Resolution: 4 digits (ACV/DCV)
Arb Waveform Generator (optioanl) Specification
Max frequency output	50MHz Dual	Sample rate		160 MSa/s
Vertical resolution	14 bits	Standard waveform		Sine, Square, Ramp, Pulse, Noise
Arbitrary waveform frequency	1 μHz - 10 MHz	Arbitrary waveform length		2-16K points
Arbitrary waveform	Exponential Rise/Fall, Sin(x)/x, Step Wave, and others total 28 built-in waveforms
Amplitude	2mVpp - 10Vpp (high impedance), 1mVpp - 5Vpp (50 Ω)
Modulation	AM, FM, PM, FSK, Sweep and Burst
Bode Plot (need AFG function)
Start / End frequency	10 Hz ~ 25 MHz
Amplitude	2mV ~ 6V
Other
Communication Interface	HDMI, USB device x1, USB Host x3, Trig Out (P/F), Type-C power supply*, LAN
Display	10.1 inch (1024×600), LCD
Power	100V – 240 VACRMS, 50/60 Hz, CAT Ⅱ
Dimension (WxHxD)	325mm x 209mm x 111.5mm
Weight (without package)	≈3.2kg
