ADS3000 Series 4th-Generation Multifunction Digital Oscilloscope

Superior Performance
+ Based on the OWON X-Vision II advanced architecture: lower noise, higher storage, faster refresh.
+ 100M storage depth, up to 500,000wfms/s waveform refresh rate, ensuring clear signal capture.
+ Vertical accuracy is 500uV/div-10 V/div, and time base range is 500 ps/div-1000s/div.
+ 1M- point FFT analysis ensures accurate frequency component display.
Android Based,Extensive Expandability
+ Built-in microphone and speaker, with support for external devices like mouse and keyboard, greatly enhancing efficiency.
+ Enhanced file management for easier viewing, editing, and exporting.
+ Optional wireless module (Wi-Fi/Bluetooth) supports FTP, network printers, mobile hotspots, and more.
Comprehensive Features

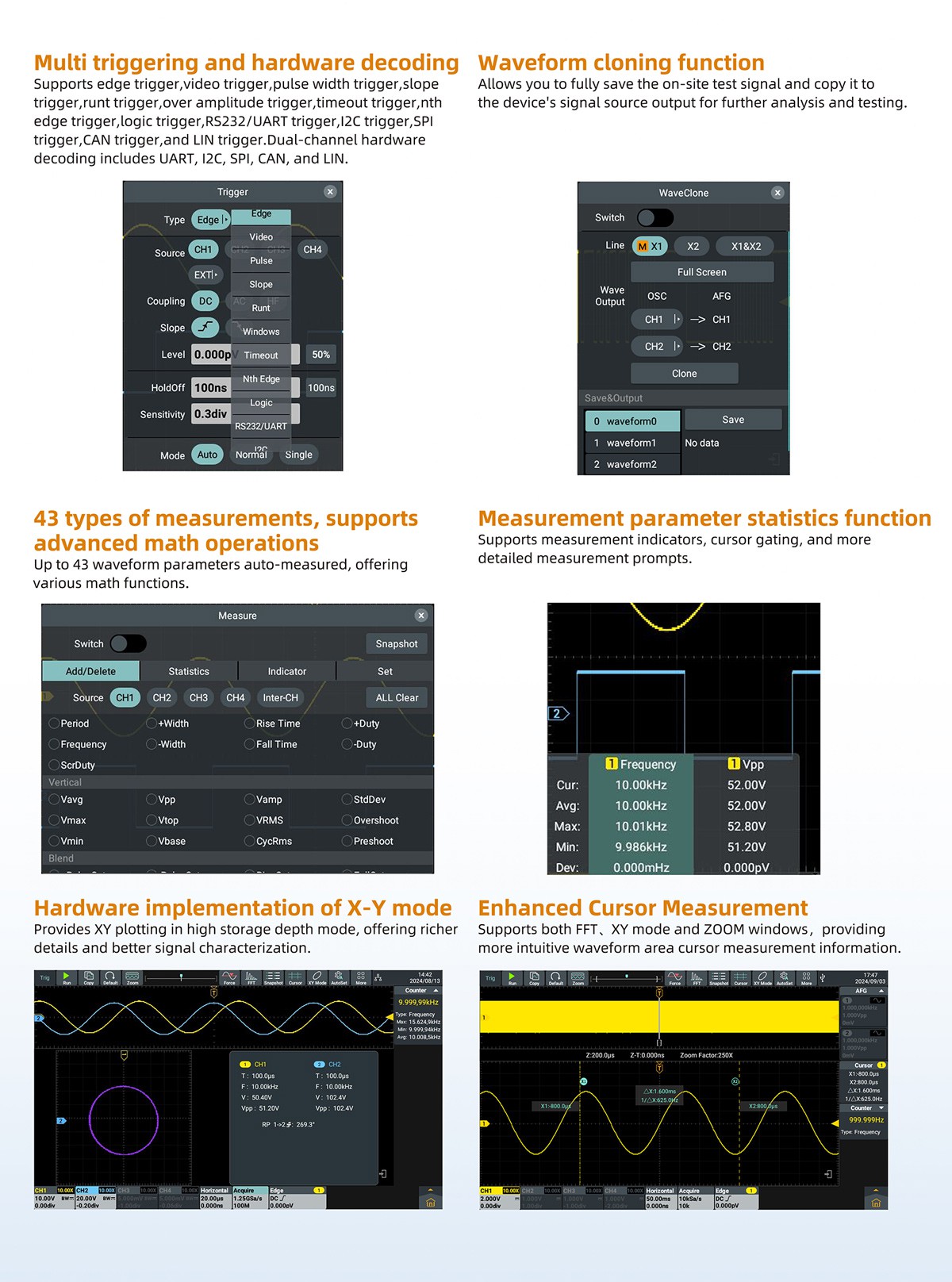

+ Integrates oscilloscope, dual-channel 50MHz AFG (optional), frequency counter, voltmeter, FFT spectrum analyzer and protocol analyzer.
+ Multi triggering: edgevideo,pulse width,slope,under amplitude,over amplitude, timeout, Nth edge, logic, and RS232/UART, 12C, SPI, CAN, LIN;
+ Waveform cloning and Bode plot functions (AFG models).
+ Enhanced FFT and ZOOM features provide clearer waveform display and cursor information.
+ Convenient measurement statistics,with measurement indicators,cursor gating,and more measurement prompts.
Human-machine Interaction and Design
+ Ultra-thin design at just 10 cm, saving valuable workspace.
+ 10.1-inch touchscreen with multi-touch support for an enhanced interactive experience.
+ Multi-touch gestures, and customizable shortcuts for easier use.
