Smartds Series Waveform Record Digital Oscilloscope
SDS Series Waveform Record Oscilloscope
Send Inquiry
Chat Now
Product Introduction

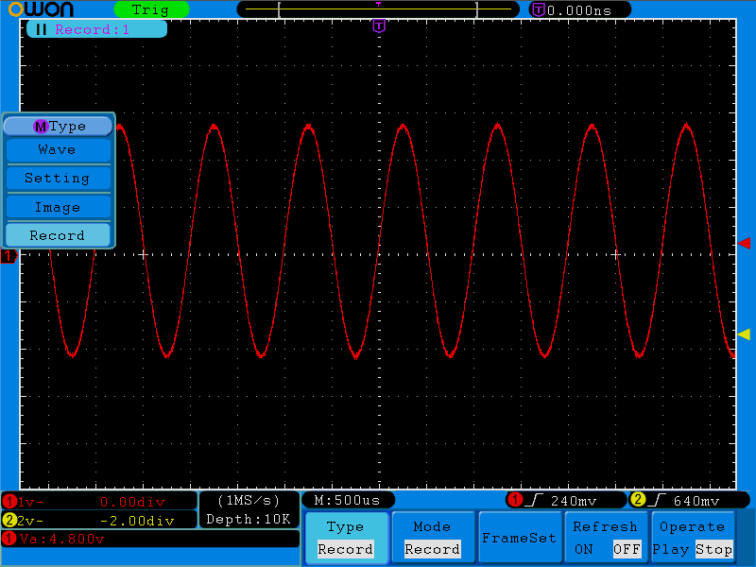

1. Waveform Record/Play
SDS series waveform record/play function support 2-channel waveform record.Moreover, Pass/Fail waveform is also able to be recorded. 1000 frames record capacity. Support waveform replay to analyzer the detail.
| Model | SDS6062 | SDS7072 | SDS7102 | SDS7202 | SDS8102 | SDS8202 | SDS8302 | SDS9302 | |
|---|---|---|---|---|---|---|---|---|---|
| Bandwidth | 60MHz | 70MHz | 100MHz | 200MHz | 300MHz | ||||
| Sample Rate | 500MS/s | 1GS/s | 2GS/s | 2.5GS/s | 3.2GS/s | ||||
| Horizontal Scale (s/div) | 5ns/div～100s/div, step by 1~2~5 | 2ns/div～100s/div, step by 1~2~5 | 1ns/div～100s/div, step by 1~2~5 | ||||||
| Display | 8”color LCD, 800 x 600 pixels | ||||||||
| Channel | 2 + 1 (external) | ||||||||
| Record Length | 10M | ||||||||
| Vertical Resolution (A/D) | 8 bits (2 channels simultaneously) | ||||||||
| Vertical Sensitivity | 2mV/div~10V/div | ||||||||
| Trigger Type | Edge, Pulse, Video, Slope, and Alternate | ||||||||
| Communication Interface | USB host, USB device, Pass / Fail, LAN, VGA (optional), or RS232 (optional) | ||||||||
| Battery (optional) | 7.4V, 8000mA | ||||||||
| Dimension (W × H × D) | 340 × 155 × 70 (mm) | ||||||||
| Weight (without package) | 1.80 kg | ||||||||
