SDS-E Series Pass/Fail Digital Oscilloscope

Name: SDS-E Series Pass/Fail Digital Oscilloscope
Brand: OWON
SKU: 45532672

SDS-E series 2ch digital oscilloscope with 30MHz,50MHZ,60MHz,70MHz,100MHz,125MHz Bandwidth, 500MS/s - 1GS/s sample rate,and 1M record length.

Send Inquiry

Chat Now

Product Introduction

- Bandwidth : 30MHz - 125MHz
- Sample rate : 500MS/s -1GS/s
- Ultra-thin body
- 8 inches high resolution LCD
- Pass / Fail function
- SCPI, and LabVIEW supported
- Digital filtering and current measurement
(excl. SDS5032E and SDS5052E)

Model No.	Channel	Bandwidth	Sample Rate	Recod Length
SDS5032E	2 + 1	30MHz	500MS/s	10K
SDS5052E	2 + 1	50MHz	500MS/s	10K
SDS6062E	2 + 1	60MHz	500MS/s	1M / optional 10M
SDS7072E	2 + 1	70MHz	1GS/s	1M / optional 10M
SDS7102E	2 + 1	100MHz	1GS/s	1M / optional 10M
SDS7122E	2 + 1	125MHz	1GS/s	1M / optional 10M

Pass/Fail function

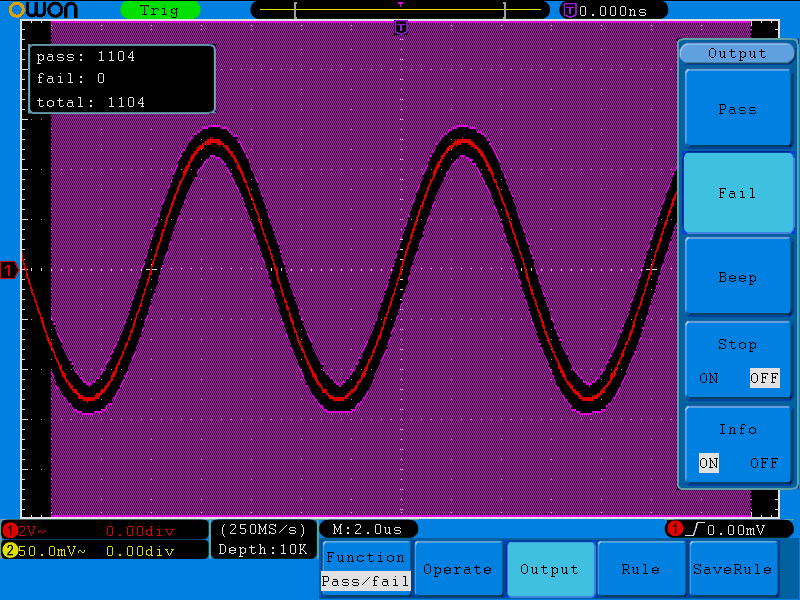

Pass/Fail function can compare the template signal edit by user (horizontal and vertical occupation) with input signal. Meet the requirement for long-term signal monitor, production monitor, filter and control.

Model	SDS5032E	SDS5052E	SDS6062E	SDS7072E	SDE7102E	SDS7122E
Bandwidth	30MHz	50MHz	60MHz	70MHz	100MHz	125MHz
Sample Rate (real time)	500MS/s			1GS/s
Horizontal Scale (s/div)	5ns/div～100s/div, step by 1~2~5			2ns/div～100s/div, step by 1~2~5
Channel	2 + 1 (external)
Display	8" color LCD, 800 × 600 pixels
Record Length	10K		1M	1M (optional 10M)
Vertical Resolution (A/D)	8 bits (2 Channels simultaneously)
Vertical Sensitivity	5mV/div～10V/div (at input)		2mV/div～10V/div (at input)
Trigger Type	Edge, Pulse, Video, Slope, and Alternate
Trigger Mode	Auto, Normal, and Single
Waveform Math	＋, －, ×, ÷, invert, FFT
Communication Interface	USB host, USB device, Pass / Fail, LAN, and VGA (optional)
Battery	not supported
Dimension (W×H×D)	348 × 170 × 78 (mm)
Weight (without package)	1.50 kg
