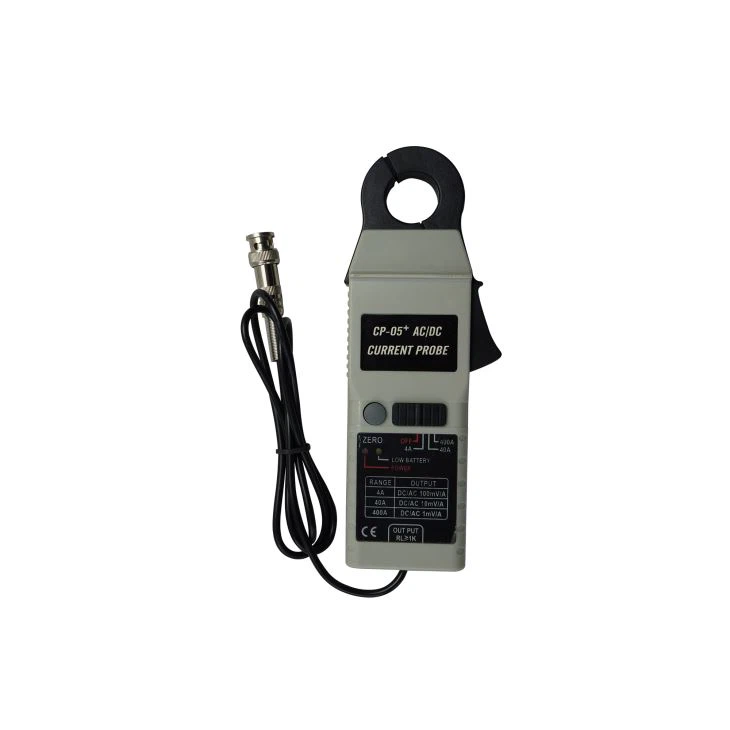

AC/DC Current Probe

About Owon

Send InquiryChat Now

Product Details

ModelCP-05+
Test Range1mA - 400A
Resolution1mA
BandwidthDC - 200KHz (±3dB)
Jaw Size23mm (max)
Auto Zero at Power-on
Power Supply9V 6F22 Battery
Operating Temperature0℃ to 50℃
Operating Humidity15% to 70% RH
DC CurrentRangeAC 4AAC 40AAC 200AAC 200A - 400A
Accuracy±2.0%rdg ± 5-digit±3.0%rdg ± 5-digit
Sensitivity1mV/10mA1mV/0.1A1mV/1A
AC CurrentRangeDC 4ADC 40ADC 200ADC 200 - 400A
Accuracy±1.5%rdg ± 5-digit±3.0%rdg ± 5-digit
Sensitivity1mV/10mA1mV/0.1A1mV/1A
Dimension (W x H x D)180 x 30 x 44mm
Device Weight200g
