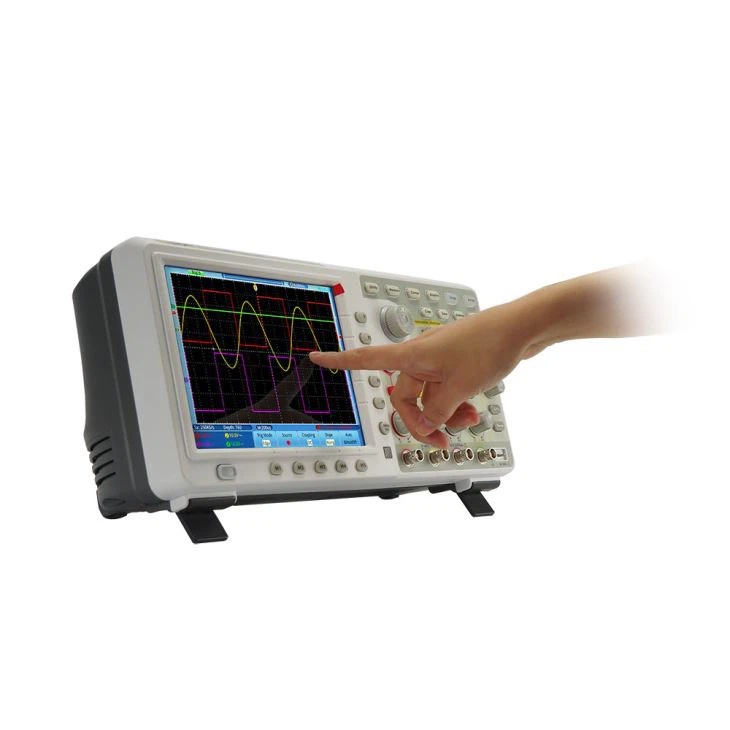

TDS Series Window Extension Digital Oscilloscope

TDS Series Window Extension Digital Oscilloscope

Touchscreen Digital Oscilloscope with 70MHz / 100MHz / 200MHz Bandwidth, 1GS/s / 2GS/s sample rate, 7.6M record length and 50,000 wfms/s waveform refresh rate
Send Inquiry
Chat Now
Product Introduction

- 70MHz-200MHz Bandwidth, Max 2GS/s Sample rate

- 7.6M record length

- 50,000 wfms/s waveform capture rate

- waveform zooming (horizontal / vertical), and saving

- FFT points (length, and resolution variable)

- multi-window extension

- 8 inches 800 x 600 pixels high def LCD

- multi- communication interface : USB, VGA, LAN

- LabVIEW supported

- 4 Channel output


Model No.ChannelBandwidthSample RateRecord Length
TDS7074470MHz1GS/s7.6M
TDS71044100MHz1GS/s7.6M
TDS81044100MHz2GS/s7.6M
TDS82044200MHz2GS/s7.6M


 Multi- window extension

Double-display, and proportion-zoom realizes waveform detail restoring when observing the whole outline.






FAQ

What is the real-time sample rate of oscilloscope


Real-time sample rate is the sampling interval inverse of a single acquisition of consecutive samples. As we know, at present, the highest level is that four channel are running simultaneously.

Sample rate are defined by “dot/second”, usually real-time sample rate should be five times of analog bandwidth or much higher than that.




Model TDS7074TDS7104 TDS8104 TDS8204
Bandwidth70MHz100MHz200MHz
Channel4
Sample Rate1GS/s2GS/s
Waveform Capture Rate50,000 wfms/s
Display8" touch screen color LCD
Record Length7.6M
Horizontal Scale (s/div)2ns/div - 100s/div, step by 1 - 2 - 5
Vertical Resolution (A/D)8 bits resolution (4 channels simultaneously)
Vertical Sensitivity2mV/div - 10V/div (at input)
Trigger TypeEdge, Pulse, Video, Slope
Trigger ModeAuto, Normal, Single
Waveform Math+, -, ×, ÷, FFT
Communication PortUSB host, USB device, VGA, LAN、AUX
Dimension (W×H×D)380 × 180 × 115 (mm)
Weight (without package)1.5 kg





SUPPORT

▶ USB driver for all series OWON DSO and AWG       xz.gif

▶ PC software for TDS Series DSO       xz.gif

▶ TDS Series DSO user manual       xz.gif


ACCESSORIES   The accessories subject to final delivery.


Power Cord

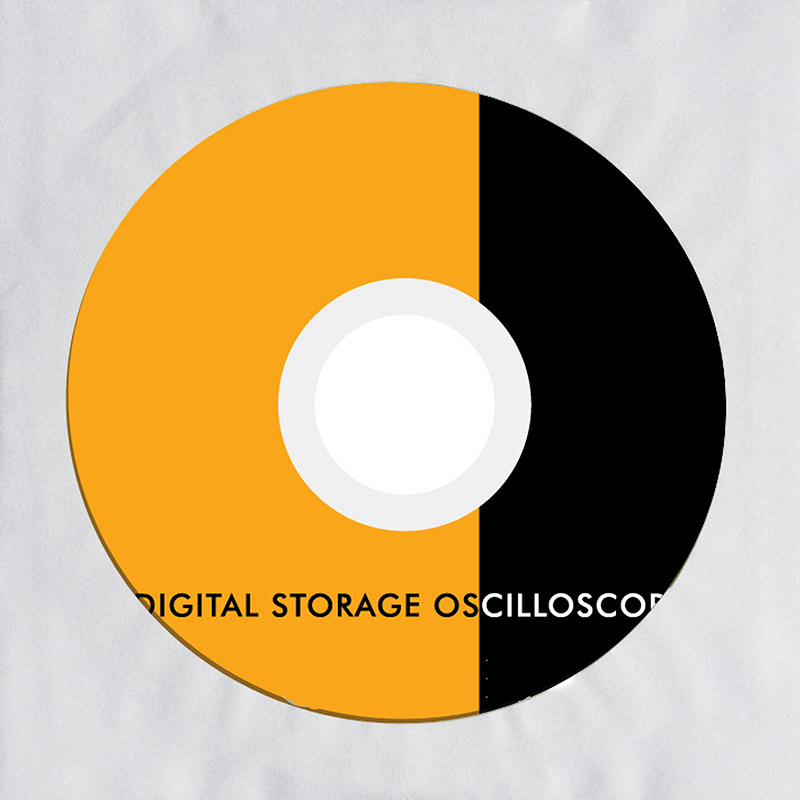

CD Rom


Quick Guide

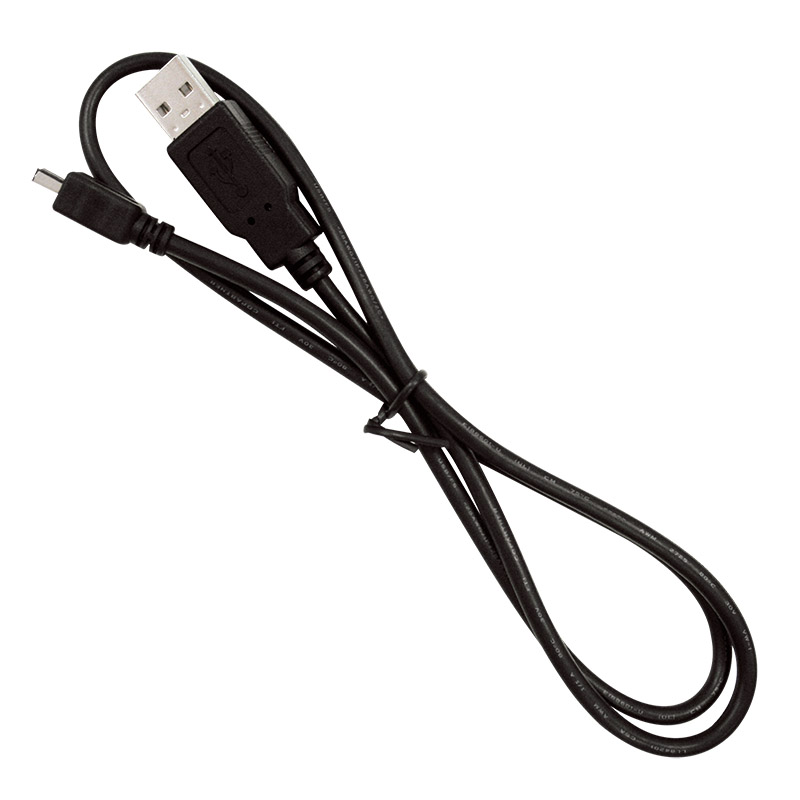

USB Cable


Probe


Probe Adjust

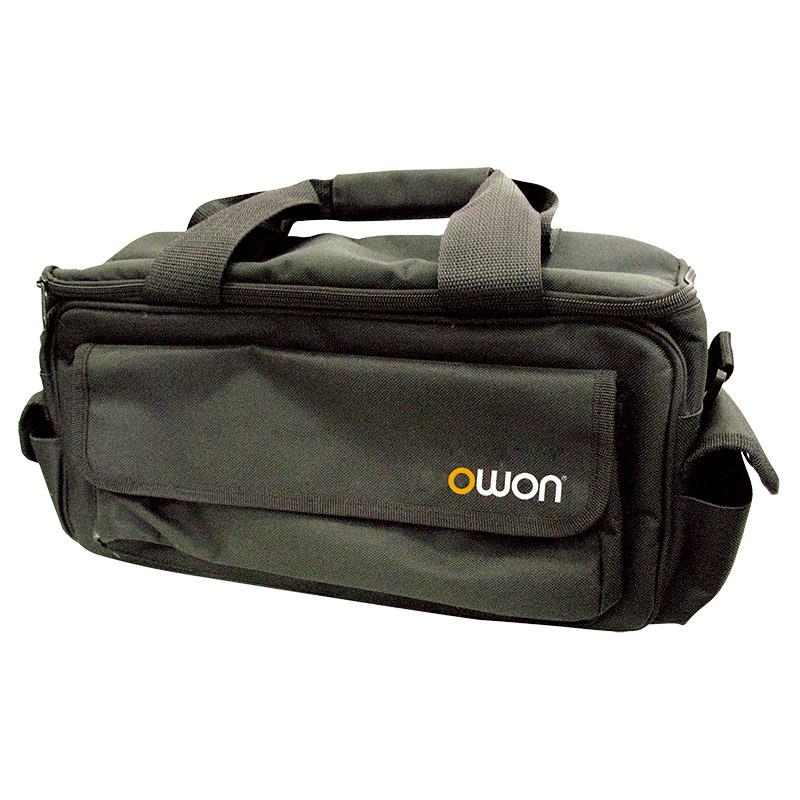

Soft Bag
(optional)
