XDG2000 Series Dual Trace Counter Waveform Generator
+ 500MSa/s Sample rate，Vertical resolution 1μHz
+ 14 bits Vertical Resolution，10Marb waveform length
+ Comprehensive waveform output : 6 basic waveforms,and 150 built-in arbitrary waveforms

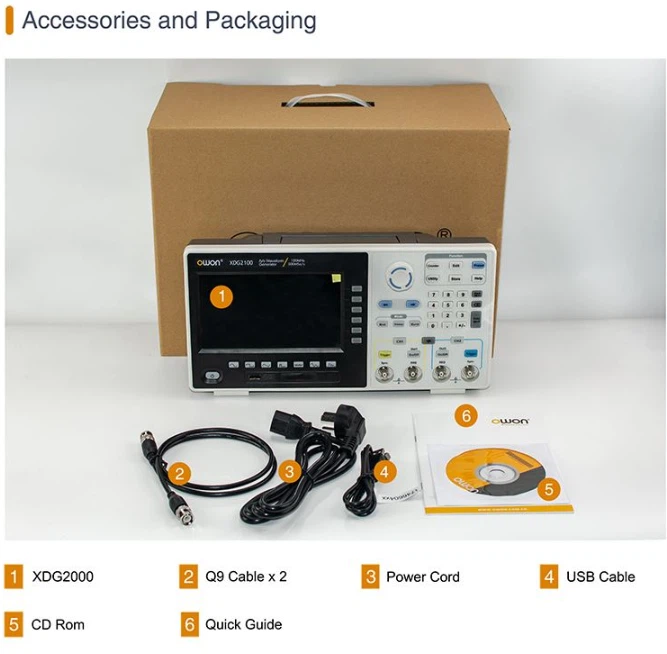

XDG2000 Series Dual trace counter waveform generator
Product Description
2-CH
Frequency output : 35MHz - 100MHz
Sample Rate : 500MS/s
+Advanced DDS technology
+1uHz frequency resolution
+ Vertical Resolution : 14 bits, max 10M Arb waveform legthComprehensive waveform output;
6 basic waveforms, and 152 built-in arbitrary waveforms
+ Comprehensive modulation functions :AM, FM, PM, FSK,3FSK, 4FSK, PSK, OSK ASK, DSB-AM, QPSK, SUM, BPSK, PWM,Sweep, Burst, etc.
+ Hiqh-accuracy frequency counter integratedsupported range 100mHz - 200MHz
+7 inch (800 x 480 pixels) TFT LCD screen
Advantage
Equal performance dual channel output
Achieving equivalent performance in dual-channel output, this feature ensures consistent and uniform functionality across both channels.
Rich sweep function
The sweep function is enriched with a variety of features, offering a comprehensive range of capabilities for versatile and detailed waveform analysis.
Rich analog and digital modulation
Diverse analog and digital modulation capabilities are incorporated, providing a comprehensive range of options for signal manipulation and enhancement.
Build-in 152 arbitrary waveforms
The device comes with a built-in library of 152 arbitrary waveforms, offering a diverse selection of predefined waveforms for versatile signal generation and analysis.
|
Model |
XDG2100 |
XDG2080 |
XDG2060 |
XDG2035 |
XDG2030 |
|
Channel |
2 |
||||
|
Frequency Output |
100MHz |
80MHz |
60MHz |
35MHz |
30MHz |
|
Sample Rate |
500MSa/s |
||||
|
Vertical Resolution |
14 bits |
||||
|
Waveform |
|||||
|
Standard Waveform |
sine, square, pulse, ramp, noise, and harmonic |
||||
|
Arbitrary Waveform |
exponential rise, exponential fall, sin(x)/x, step wave, and others, |
||||
|
Frequency (resolution 1μHz) |
|||||
|
Sine |
1μHz-100MHz |
1μHz-80MHz |
1μHz-60MHz |
1μHz-35MHz |
1μHz-30MHz |
|
Square |
1μHz ~ 30MHz |
1μHz ~ 30MHz |
1μHz ~ 30MHz |
1μHz ~ 15MHz |
1μHz-15MHz |
|
Pulse |
1μHz ~ 25MHz |
1μHz ~ 25MHz |
1μHz ~ 25MHz |
1μHz ~ 15MHz |
1μHz-15MHz |
|
Ramp |
1μHz ~ 3MHz |
1μHz ~ 3MHz |
1μHz ~ 3MHz |
1μHz ~ 3MHz |
1μHz-3MHz |
|
Noise (-3dB，typical) |
100MHz |
80MHz |
60MHz |
35MHz |
30MHz |
|
Arbitrary Waveform |
1μHz ~15MHz |
1μHz ~15MHz |
1μHz ~15MHz |
1μHz ~15MHz |
1μHz-15MHz |
|
Harmonic |
1μHz ~50MHz |
1μHz ~40MHz |
1μHz ~30MHz |
1μHz ~17.5MHz |
1μHz-15MHz |
|
Accuracy |
±2ppm, 25°C±5°C |
||||
|
Waveform Length |
2 points - 10M points |
||||
|
Amplitude |
|||||
|
into 50Ω load |
1mVpp ~ 10Vpp（≤ 25MHz）； |
||||
|
Modulation |
|||||
|
Type |
AM、DSB-AM、FM、PM、ASK、FSK、PSK、BPSK、QPSK、3FSK、4FSK、OSK、PWM、SUM |
||||
|
Frequency Counter |
|||||
|
Function |
Frequency， period, +width, -width, +duty, and -duty |
||||
|
Frequency Range |
100mHz ~ 200MHz |
||||
|
Frequency Resolution |
7 digits |
||||
|
Input / Output |
|||||
|
Input mode |
frequency counter, |
||||
|
Communication Interface |
USB Host, USB Device, LAN, RS232 (optional) |
||||
|
Mechanical specifications |
|||||
|
Size |
340mm x 177mm x 90mm |
||||
|
Weight |
2.3kg |
||||
