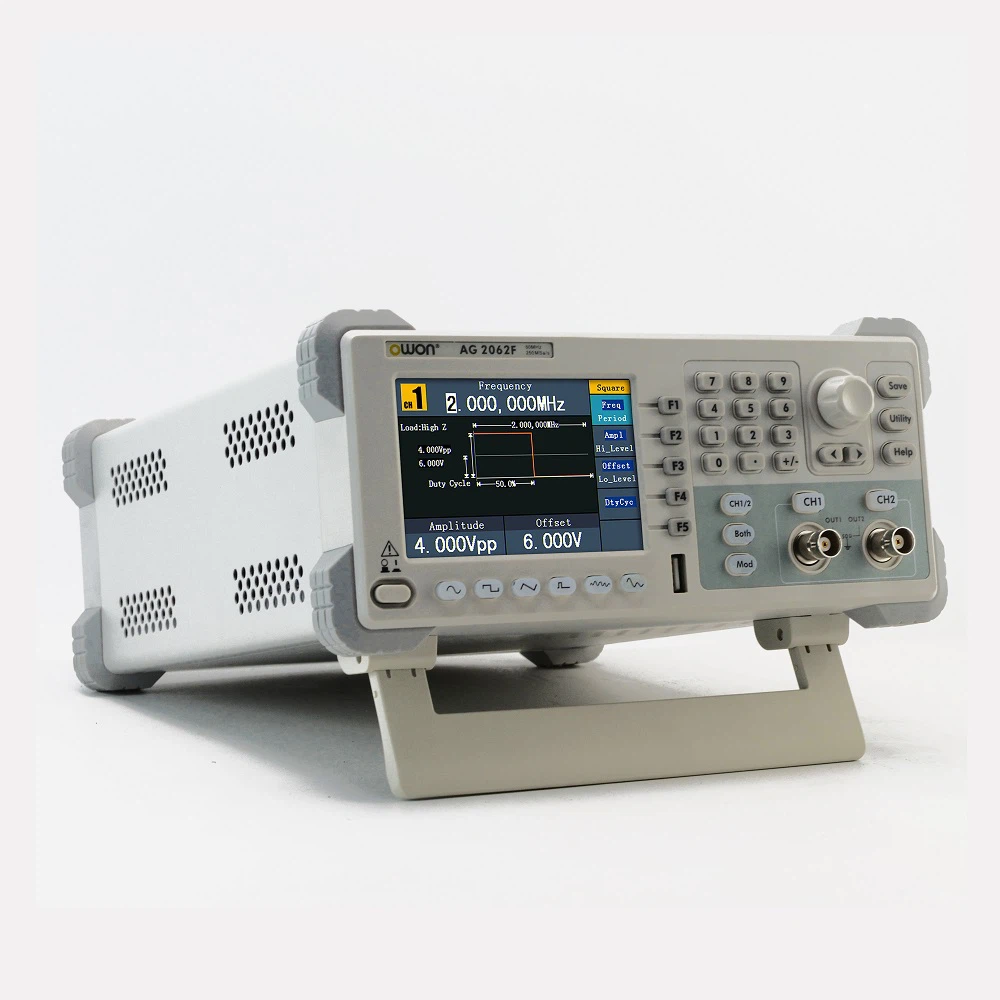

AG Series 2-CH Arbitrary Waveform Generator
- Up to 250MS/s sample rate, and 1μHz frequency resolution
- Vertical Resolution : 14 bits, up to 1M arb waveform length
- Comprehensive waveform output : 5 basic waveforms, and
45 built-in arbitrary waveforms
- Comprehensive modulation functions :AM, FM, PM, FSK, PWM, ASK, PSK, Sweep, and Burst
- High-accuracy frequency counter integrated, supported range 100mHz - 200MHz
- Supported SCPI
- 4 inches high resolution (480 × 320 pixels) TFT LCD display
AG Series 2-CH Arbitrary Waveform Generator
Advanced DDS technology, max 60MHz frequency output
Up to 250MS/s sample rate, and 1μHz frequency resolution
Vertical Resolution：
14 bits, up to 1M arb waveform length
Comprehensive waveform output：
5 basic waveforms, and 45 built-in arbitrary waveforms
Comprehensive modulation functions：
AM, FM, PM, FSK, Sweep, Burst, etc.
SCPI, and LabVIEW supported
4 inch high resolution
(480 × 320 pixels) TFT LCD display
100mHz - 200MHz
high-accuracy frequency counter integrated
AG Series 2-CH Arbitrary Waveform Generator is a versatile solution, featuring dual channels for simultaneous signal generation. With a wide frequency range and 14-bit vertical resolution, it ensures precise waveform control. The generator supports multiple modulation types, including AM, FM, and PWM, offering flexibility for various applications. Its intuitive interface, large display, and USB connectivity enhance user convenience. Ideal for educational, research, and industrial purposes, the AG Series provides reliable and customizable waveform generation for diverse testing and experimentation needs.
Dual Channel Epuivalent Output
The AG Series 2-CH Arbitrary Waveform Generator excels with dual equivalent channel output, enabling seamless waveform and status replication between channels. This innovative feature allows for precise frequency, amplitude, and phase coupling. Ideal for applications requiring synchronized dual-channel signals, it offers enhanced flexibility and convenience in waveform generation for diverse testing scenarios.
Build-in 45 Arbitrary Waveforms
The AG Series boasts a rich repository of 45 built-in arbitrary waveforms, providing a versatile foundation for signal generation. Additionally, it features a wide selection of common waveforms for education and industry, divided into common, math, engineer, window, and other types.This classification enhances user accessibility, offering a diverse range of signals for various applications, from foundational experiments to advanced engineering tasks.
Build-in 200MHz hardware counter
The AG Series 2-CH Arbitrary Waveform Generator is equipped with a built-in 200MHz hardware counter, ensuring precise frequency measurements. With a 6-bit/sec frequency rate, it accommodates a wide frequency range from 100MHz to 200MHz. This feature enables accurate measurements of signal time, duty cycle, and pulse width, enhancing the generator's capabilities for detailed waveform analysis and testing.
About OWON
| Model | AG1012 | AG1012F | AG1022 | AG1022F | AG2052F | AG2062F |
|---|---|---|---|---|---|---|
| Channel | dual | |||||
| Frequency Output | 10MHz | 25MHz | 50MHz | 60MHz | ||
| Sample Rate | 125MS/s | 300MS/s | ||||
| Vertical Resolution | 14 bits | |||||
| Waveform | ||||||
| Standard Waveform | Sine, Square, Pulse, Ramp, and Noise | |||||
| Arbitrary Waveform | Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform | |||||
| Frequency(resolution 1μHz) | ||||||
| Sine | 1μHz - 10MHz | 1μHz - 25MHz | 1μHz - 50MHz | 1μHz - 60MHz | ||
| Square | 1μHz - 5MHz | 1μHz - 5MHz | 1μHz - 25MHz | 1μHz - 30MHz | ||
| Pulse | 1μHz - 5MHz | 1μHz - 5MHz | 1μHz - 10MHz | 1μHz - 15MHz | ||
| Ramp | 1μHz - 1MHz | |||||
| Noise | 25MHz (-3dB) (typical) | |||||
| Wave Length | 2-8K pts | 2-1M pts | ||||
| Amplitude | ||||||
| Amplitude | 1mVpp - 10Vpp (50Ω), 1mVpp - 20Vpp (high impedance) | |||||
| Modulation | ||||||
| Modulation Waveform | / | AM, FM, PM, FSK, Sweep, and Burst | AM, FM, PM, FSK, Sweep, and Burst | |||
| Modulation Frequency | / | 2mHz to 20.00KHz (FSK 1μHz - 100KHz) | ||||
| Mechanical | ||||||
| Dimension (W×H×D) | 235 × 110 × 295 (mm) | |||||
| Device Weight | 3.00 kg | |||||
