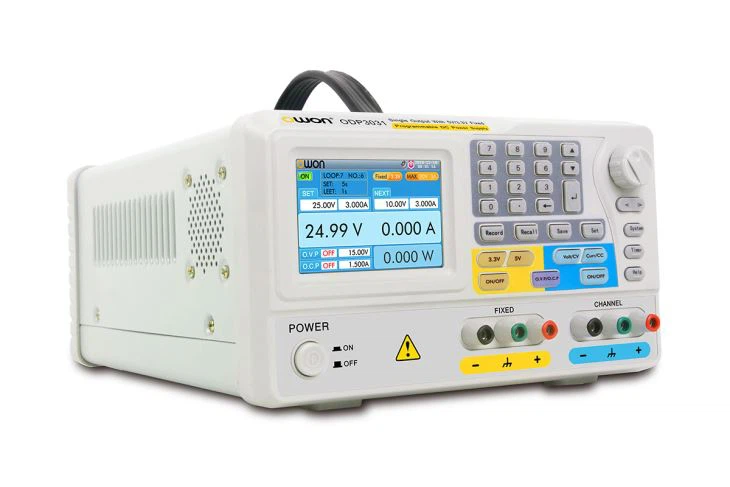

OWON 2-CH Output Programmable DC Power Supply



+ Two independent controllable channels+Sense

+ Output resolution : 1mV / 1mA

+ Low ripples / low noise

+ Up to 100 group timers

+ Multi- working mode : individual, parallel, and series

+ Over-voltage / Over-current protection

+ Data-logging function: could record the output voltage, and current;
and display recorded data in chart

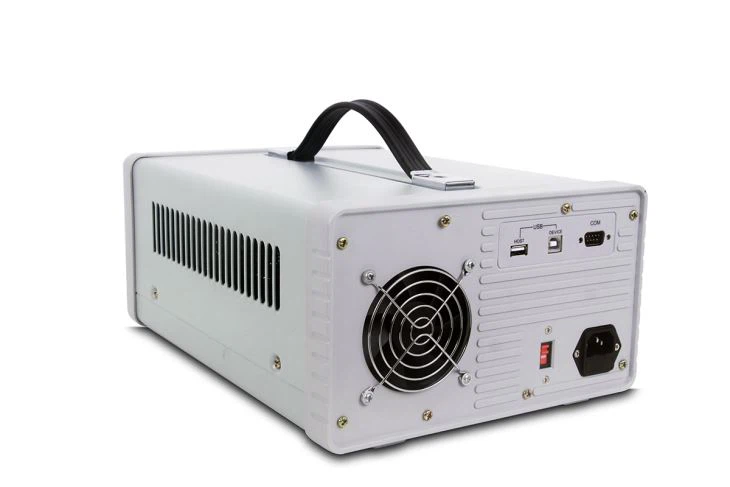

+ Auto-cooling system

+ Multi- CI: USB, RS232, and LAN

+ SCPI, and LabVIEW supported

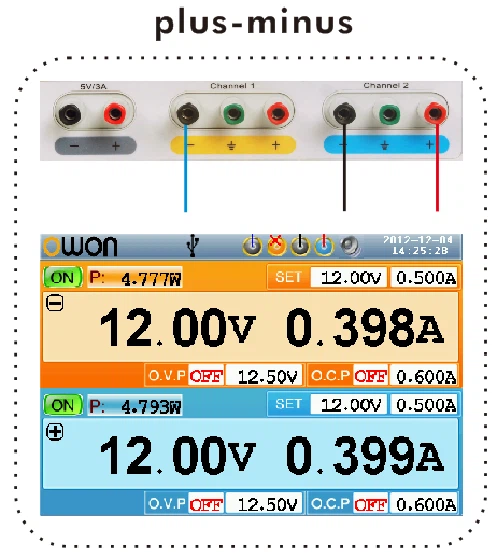

OWON ODP series power supply supports independent dual channel output. Users get access to switch among 4 modes : independent, parallel connection, series connection, and plus-minus, no need extra external hopping, so one unit power supply functions as two.



Support 100 group timing output settings, users could adjust the power output curve in the PC or on the Power Supply unit. Applied to artificial simulated power output variation.

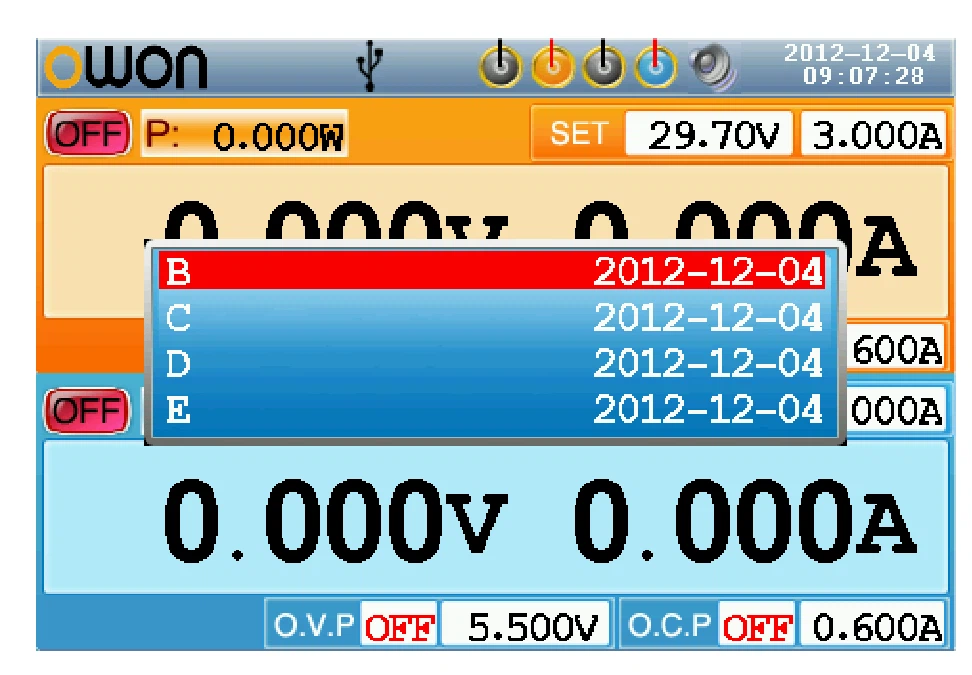

The digital power supply of similar performance accepts 4 group storage data or so, while OWON ODP series is able to accommodate 10 group, which facilitates users choosing preset settings from storage data, saving hand labor.

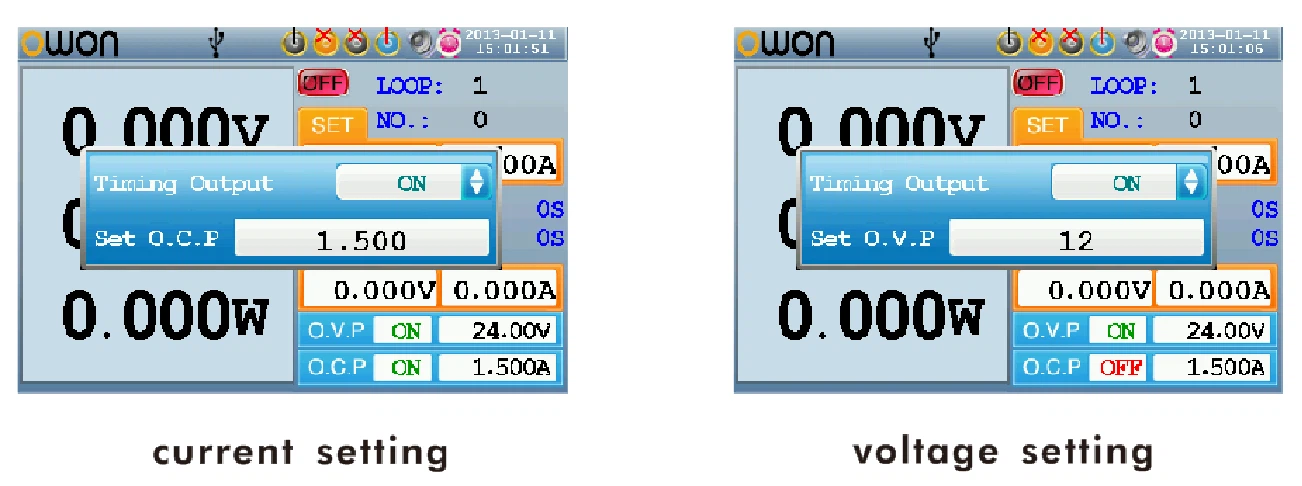

OWON ODP series power supply equipped with Over Voltage / Over Current Protection (OVP / ODP) function, when operating, users could choose/fix OVP point value, and/or ODP point value via the button key on the front panel. Once power reaches OVP point value (or ODP point value), the power supply system will close the output, and the screen displays fixed OVP (or ODP) point value flickering, accompanying by continual"beep"alarm sound, the alarm sound will not disappear until output (button) shut off by hand triggering.

OWON ODP3032 features super- low ripples, and super- low noise, only 300uVrms / 2mVpp, which causes almost no influences to circuit test.
