VDS6000 Series 4CH PC Oscilloscope



VDS6000 series PC virtual oscilloscope, an ultra-thin and lightweight instrument, makes your travel more convenient. It not only provides wireless transmission, bringing you unlimited possibilities, but also has excellent performance. It has a bandwidth of 100MHz, 1GSa /s sampling rate and 10M point storage depth, this virtual oscilloscope can meet your needs for high performance. In addition, it also has 12-bit or 14-bit high precision, allowing you to obtain more accurate measurement data. There are many more amazing features waiting for you, so let’s take a closer look.













The VDS6000 series PC virtual oscilloscope is remarkably slim and lightweight, ensuring easy portability, and serves as a practical companion for your on-the-go needs. It eliminates the limitations of fixed locations, granting you the flexibility to conduct measurements and tests with ease, wherever they are required.

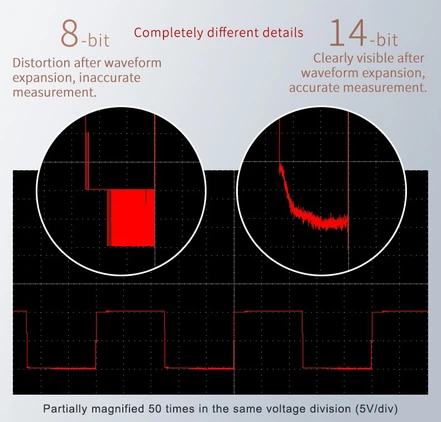

The VDS6000 series PC virtual oscilloscopes are equipped with 12-bit and 14-bit hardware analog-to-digital converters (ADC), delivering measurement precision that surpasses that of standard oscilloscopes by 16 times and 64 times, respectively. This translates to significantly improved accuracy and finer resolution compared to conventional oscilloscopes. When examining the same waveform at tenfold magnification, the difference between an 8-bit oscilloscope and a 14-bit oscilloscope becomes evident, offering more comprehensive and precise signal analysis capabilities.

















Supports Multi-platform secondary development, while also providing compatibility with the standard SCPI protocol for interoperability with other devices. Additionally, it is compatible with LabVIEW, facilitating easier integration for data acquisition and control.





























VDS6000 series PC virtual oscilloscope adopts USB Type-C interface to realize plug-and-play, making it extremely easy to use and practical. No cumbersome installer or setup required, you just plug it in and start using it right away. In addition, it also supports mobile power supply, allowing you to obtain power wherever you need it and keep your measurement work going.





















VDS6000 series oscilloscope supports 10M record length and 1GSa/s samplerate. While having a high sample rate, it can capture waveforms for a longtime, helping you to see the details buried in the complex signal, and dis-cover the abnormality and accidental hidden event.This series of oscilloscopes also supports variable record length, allowingyou to make a balanced choice between record length and sample rate.











10M record length and 1GSa/s sample rate











Model		VDS6102		VDS6102A
bandwidth		100MHz		100MHz
channel		2CH scope + 1CH FG
Sample rate		Max 1GSa/s
Rise time		≤3.5 ns
Horizontal scale		5ns/div～100s/div，step by 1～2～5
Sampling Mode		sample, peak detect, average
Record length		10M
Input Coupling		DC, AC, ground
Input Impedance		1 MΩ ± 2%, in parallel with 15 pF ± 5 pF
Vertical Sensitivity		2mV/div～5V/div
Vertical Resolution (A/D		8bits		14bits
Max Input Voltage		40 V (DC + AC Peak)
Probe Attenuation Factor		1X，10X，100X，1000X
Channel isolation		50Hz:  100: 1，10MHz:  40: 1
Interpolation		Sin(x)/x
Vertical Range		±2 V (2 mV/div – 50 mV/div)； ±20 V (100 mV/div – 500m V/div)； ±40 V (1 V/div – 5 V/div)
LF Respond (AC, -3dB)		≥5Hz (at input, AC coupling, -3dB)
Trigger Type		edge, video, slope, pulse
Line/Field Frequency (video)		supported standards: NTSC, PAL and SECAM broadcast systems
Trigger Mode		auto, normal, single
Lissajous Figure	Bandwidth	full bandwidth
	Phase Difference	±3 degrees
Automatic Measurement		Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A→B, Delay A→B, +Width, -Width, +Duty, -Duty
Communication Interface		USB (Typ-c)；LAN, WIFi (optional)
Power Consumption		≤8W
Dimensions (W × H × D)		190mm×120mm×18mm
Device Weight		≈0.38 kg



Function Generator
Standard Waveforms	Sine (0.1 Hz - 5 MHz), Square（0.1 Hz-200 kHz), Ramp（1 Hz-10 kHz), Pulse（1 Hz-10 kHz）
Frequency Output	5 MHz
Sampling Rate	25M Sa/s
Channel	1
Vertical Resolution	10bits
Amplitude Range	10mVpp - 5Vpp
DC Offset Range (AC+DC)	±2.5V
Output Impedance	50 Ω (typical)
