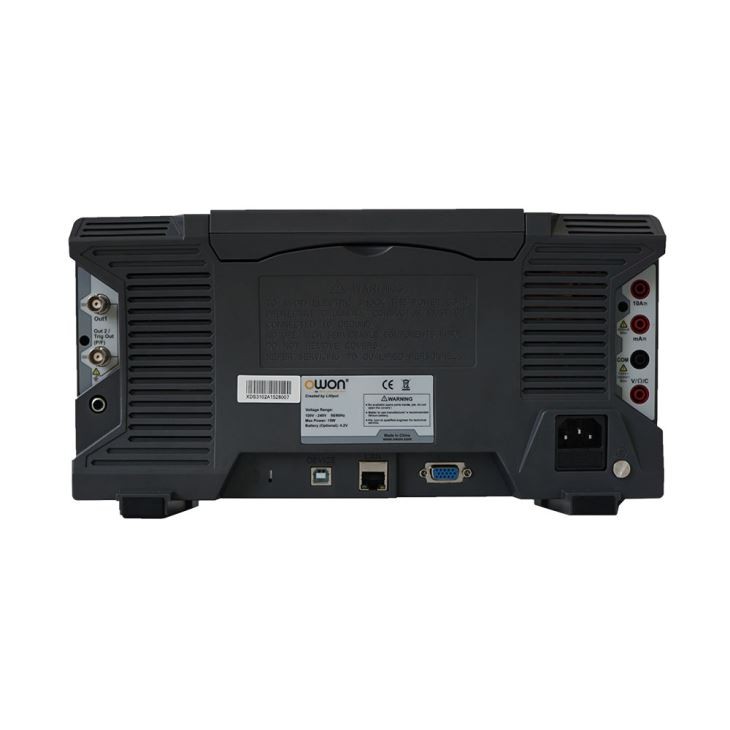

XDS Series 12-bit Digital Oscilloscope

Super Performance + 8-bit, 12-bit or 14-bit high resolution ADC, restoring the waveform detail fully + 40M record length, and 75,000 wfms/s waveform refresh rate + low background noise, vertical sensitivity in 1 mV/div - 10 V/div + multi- trigger, and bus decoding function + SCPI, and LabVIEW supported Creative New Look + ultra-thin body-design, less space accommodation + multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more + VGA port - better solution for video expansion, and teaching demonstration + 8 inch 800 x 600 high resolution LCD + optional multi-touch screen, more user-friendly operation experience n-in-1 functions as data logger, and multimeter with data logging function, and dual-channel 25MHz / 50MHz arbitrary waveform generator, furthermore, battery pack, and WiFi module supported

Send InquiryChat Now

Product Details


1. 12 / 14-bits ADC and original magnifier function

XDS series introduce 12 / 14 bits hardware ADC, the precision is 16/64 times against other oscilloscope on market. Equipping with OWON’s original magnifier function, it can observe the signal low down to 31.25μV/div.

12 / 14-bits ADC and original magnifier function


ModelXDS3062AXDS3102AXDS3202AXDS3102XDS3202EXDS3202XDS3302
Bandwidth60MHz100MHz200MHz100MHz200MHz300MHz
Sample Rate1GS/s2GS/s2.5GS/s
Vertical Resolution (A/D)12 bits14 bits8bits
Record length40M
Horizontal Scale (s/div)2ns/div - 1000s/div,  step by 1 - 2 - 51ns/div - 1000s/div, step by 1 - 2 - 52ns/div - 1000s/div, step by 1 - 2 - 51ns/div - 1000 s/div,step by 1 - 2 - 5
Channel2 + 1 (external)
Display8" color LCD, 800 x 600 pixels
Trigger TypeEdge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,and CAN (optional)
Bus DecodingI2C, SPI, RS232, and CAN (optional)
Communication InterfaceUSB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Power Supply100V - 240V AC, 50/60Hz, CAT II
Power Consumption<15W
Fuse2A, T class, 250V
Battery (optional)3.7V, 13200mAh
Dimension (W x H x D)340 x 177 x 90 mm
Weight2.60 kg


Optional Module / Function
VGAVGA+AV
WIFWiFi
AWGarb waveform generator
DMMdigital multimeter
TOUTouch screen(capacitor-type)
