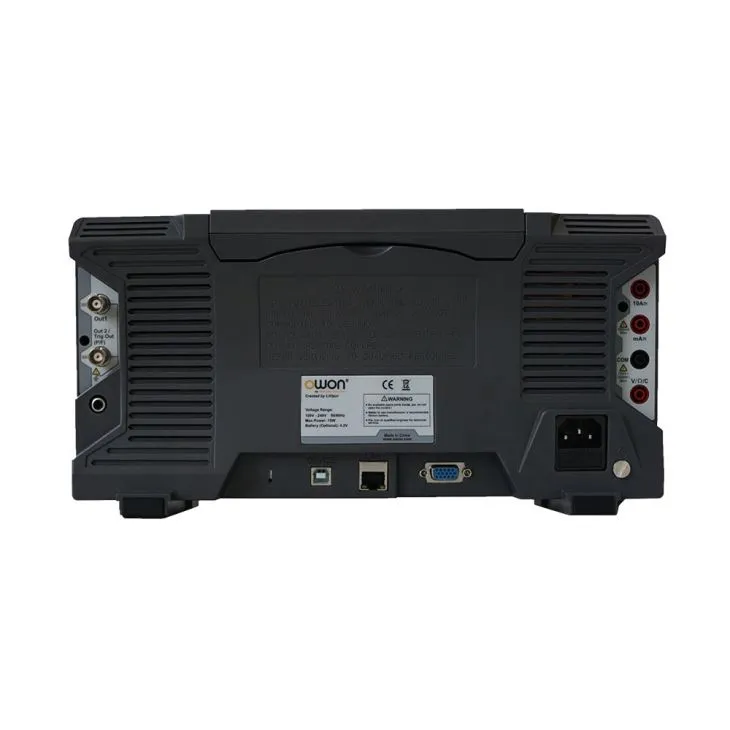

XDS3000-E Series 4CH 8/14bit Touchscreen Digital Oscilloscope

Touchscreen Digital Oscilloscope with 60MHz / 100MHz Bandwidth, 1GS/s sample rate, 8-bit or 14-bit high resolution ADC, 40M record length and 45,000 wfms/s waveform refresh rate

Send InquiryChat Now

Product Details

+ 60MHz / 100MHz Bandwidth,1GS/s sample rate
+ 8-bit or 14-bit high resolution ADC
+ 40M record length 45,000 wfms/s waveform refresh rate
+ low back ground noise
+ 8 inch 800 x 600 high resolution LCD, optional multi-touch screen, more user-friendly operation experience
+ SCPI, and LabVIEW supported
+ multi- trigger, and bus decoding function
+ multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA


Model Bnadwidth Sample Rate Vertical Resolution (A/D) Record Length
XDS3064E 60MHz 1GS/s 8 bits 40M
XDS3104E 100MHz 1GS/s 8 bits 40M
XDS3064AE 60MHz 1GS/s 12 bits 40M
XDS3104AE 100MHz 1GS/s 12 bits 40M


1. Multi-function mobile tester

Oscilloscope + signal generator + multimeter +data logger +frequency counter + decoder. Support Li-on battery to implement floating test.


2. Leading 75,000 frame/sec waveform refresh rate, muti-level gray scale and color temperature display.


3. WiFi function


4. Multi-touch screen, easy to operate


Model XDS3064E XDS3104E XDS3064AE XDS3104AE
Bandwidth 60MHz 100MHz 60MHz 100MHz
Sample Rate 1GS/s
Vertical Resolution (A/D)) 8 bits 14 bits
Record length 40M
Waveform Refresh Rate 45,000 wfms/s
Horizontal Scale (s/div)) 2ns/div - 1000s/div, step by 1 - 2 - 5
Channel 4
Display 8" color LCD, 800 x 600 pixels display
Sample Rate / Relay Time Accuracy ±1ppm
Input Coupling DC, AC, GND
Vertical Sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)
Bus Decoding(optional) I2C, SPI, RS232, CAN
Trigger Mode Auto, Normal, and Single
Vertical Range ±2V(1mV/div~50mV/div);±20V(100mV/div~1V/div);±200V(2V/div~10V/div)
Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Frequency Counter available
Power Supply 100V - 240V AC, 50/60Hz, CAT II
Fuse 2A, T class, 250V
Battery (optional) 3.7V, 13200mA
Dimension (W x H x D) 340mmx177mmx90mm


Optional Module / Function
VGA VGA+AV port
WIF Wifi
AWG arb waveform generator
DMM digital multimeter
MTS Touch screen(capacitor-type)


Optional Decoding Kit
RS232 RS232
SPI SPI
I2C I2C
CAN CAN
