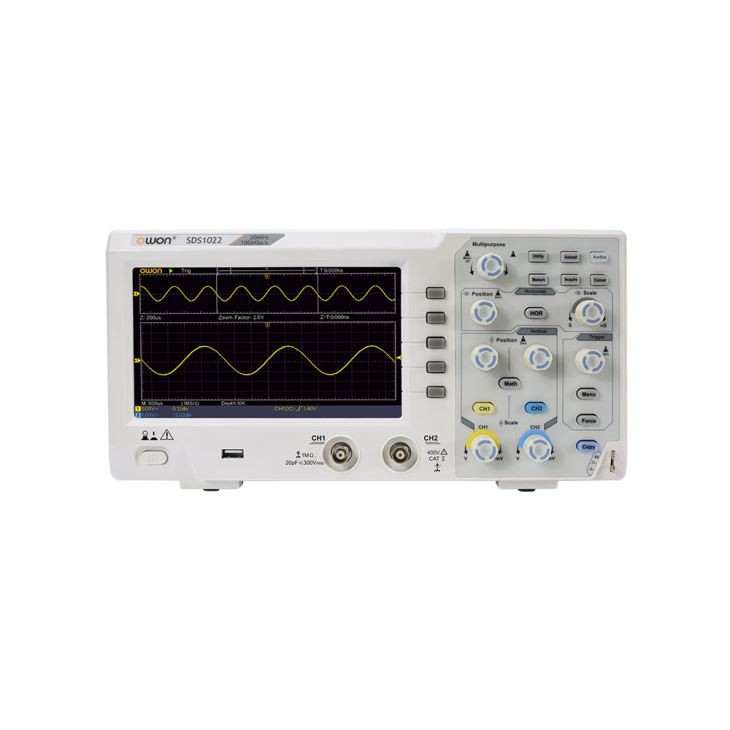

SDS1000 Series Super Economical Type Digital Oscilloscope

- Bandwidth : 20MHz - 100MHz
- 2-Channel
- Sample rate : 100MS/s -1GS/s
- Ultra-thin body
- 7 inch high resolution LCD
- SCPI, and LabVIEW supported

Send InquiryChat Now

Product Details

Review by engineer


- Bandwidth : 20MHz - 100MHz
- 2-Channel
- Sample rate : 100MS/s -1GS/s
- Ultra-thin body
- 7 inch high resolution LCD
- SCPI, and LabVIEW supported


Model No.ChannelBandwidthSample RateRecord Length
SDS10222+120MHz100MS/s10K
SDS11022+1100MHz1GS/s10K



1.large display

7’’ high resolution LCD brings more waveform detafulfilling better visual effect.





 2. Size & Package

ModelSDS1022SDS1102
Bandwidth20MHz100MHz
Sample Rate100MS/s1GS/s
Horizontal Scale (s/div)5ns/div - 1000s/div, step by 1 - 2 - 52ns/div - 1000s/div, step by 1 - 2 - 5
Channel2
Display7" color LCD, 800 x 480 pixels
Input CouplingDC, AC , and GND
Vertical Resolution (A/D)8 bits (2 channels simultaneously)
Vertical Sensitivity5mV/div - 5V/div (at input)
Trigger TypeEdge, Video
Trigger ModeAuto, Normal, and Single
Waveform Math+, -, x, ÷, invert, FFT
Fuse2A, T class, 250V
Dimension (W x H x D)301 x 152 x 70 mm
Device Weight1.10 kg
